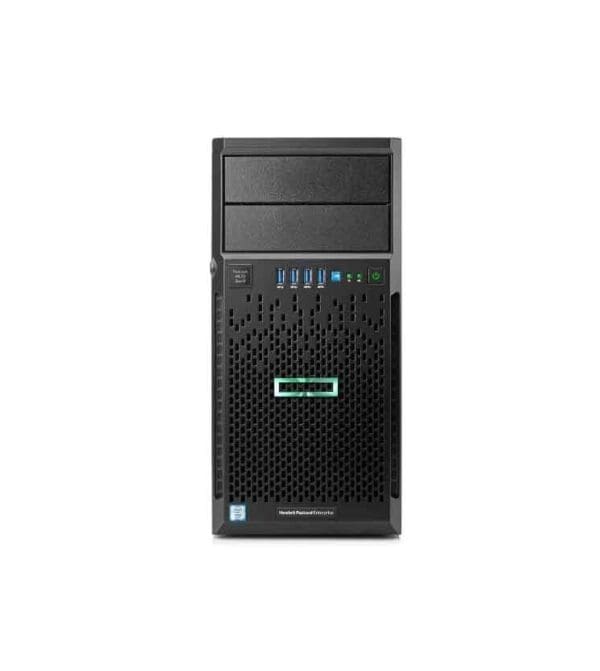

767063-B21 HP Proliant ML150 G9 CTO Chassis Intel C610 Chipset

767063-B21 Technical Specifications

HP Proliant ML150 G9 CTO Chassis Intel C610 Chipset With No CPU, No RAM, Smart Array B140I Without FBWC, 1GB 4-Port 331I Ethernet Adapter, 4LFF 5U Tower Server

GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 767063-B21
Product Name: Proliant Ml150 G9 5u Tower Server (Cto Model)
PROCESSOR & CHIPSET :
Processor Type : Intel E5-V3
Compatible Processor Socket : Fclga2011-3
Max Supported Qty : 2
Chipset Type : Intel C610 Series
CACHE MEMORY :
Cache Memory Type : Smart Cache
MEMORY :
Installed Size : None / 256 Gb (Max)
Form Factor : Dimm 288-Pin
Total Memory Slots : 16
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Storage Controller Name : Smart Array B140i
Buffer Size : None
Disk Drive : Up To 6gb/S Sata (Serial Ata)
Connectors : 10 Internal Sata Connectors
Server Interface : X4 Pcie 2.0
Sata Speed : 6gb/S Sata Links
Logical Drives Supported : Up To 8 Logical Volumes (6 Physical Drives)
Host Memory Addressing : 64-Bit, Supporting Greater Than 4gb Server Memory Space
Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
GRAPHICS CONTROLLER :
Type : Plug-In Card
Graphics Processor : Nvidia Quadro K2200
NETWORK & COMMUNICATION:
Ethernet Controller : Hp Ethernet 1gb 4-Port 331i Adapter
Network Processor : Broadcom Bcm5719 Chipset
Ethernet Ports : 4 X Gigabit Ethernetduplex Theoretical Bandwidth
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Integrated Lights-Out 4
Remote Management Controller : Rj-45 (Two)
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
5U Tower
