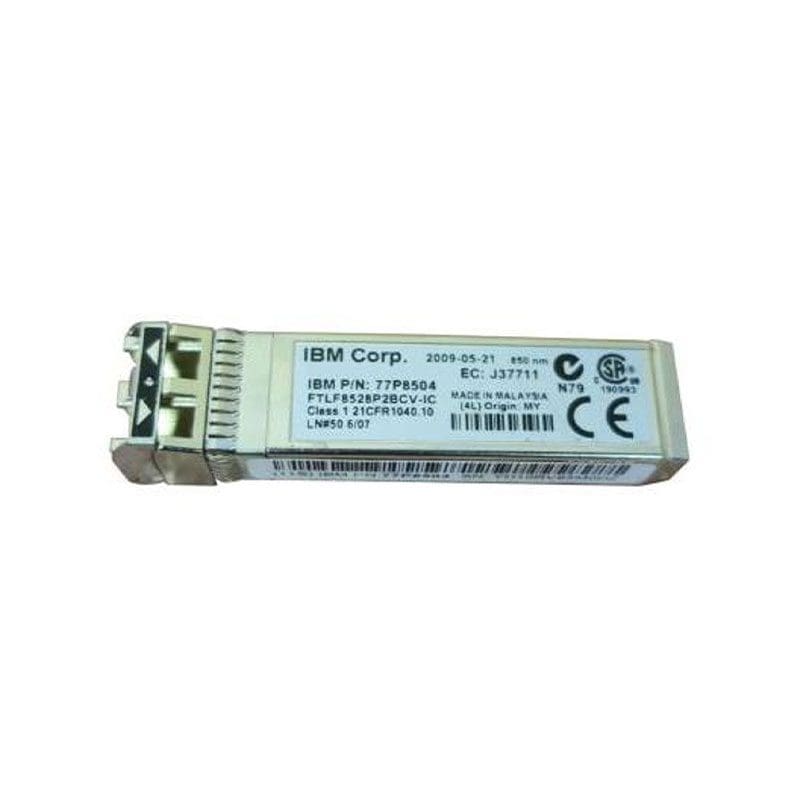

77P8504 IBM 8 Gb SFP+ SW Optical Transceiver

77P8504 Technical Specifications

IBM 8 Gb SFP+ SW Optical Transceiver

Up to 8.5 Gbps Bi-directional Data Links
850nm VCSEL transmitter, PIN photo-detector
Duplex LC connector
Metal enclosure, for lower EMI
Build-in Digital Diagnostics Monitoring (DDM) through Serial Interface comply with SFF-8472
Single 3.3V power supply
RoHS compliant and Lead-free
Form Factor: SFP+
Data Rate: 8Gb/s
Wavelength: 850 nm
Fiber Type: MMF
Max Distance: 300 m
Optical Components: VCSEL/PIN
Transmitter Power: -6 ~ -1 dBm
Extinction ratio: > 3.5 dB
Receiver Sensitivity: < -10 dBm Receiver Overload: > 0.5 dBm
Connector: LC Duplex
Digital Diagnostic Monitoring: Yes
Environment
Operating: 0°C to 70°C
Storage: -40°C to 85°C
Weight: 0.03 kg
