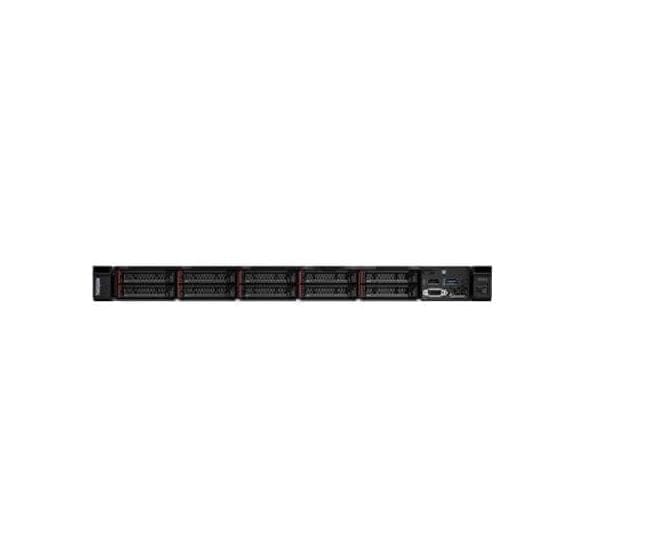

7X02A029NA Lenovo Thinksystem SR630,2XXEON Gold

7X02A029NA Overview

Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/ email, streaming media, web, and HPC.


Buy Now
Availability: In Stock

7X02A029NA Technical Specifications

 Lenovo Thinksystem SR630,2XXEON Gold

General Information
Product Name Thinksystem SR630,2XXEON Gold 5118 12C/2.3GHZ/16.5MB/105w/DDR4-2400,2X32GB
Product Line ThinkSystem
Product Series SR630
Product Model 7X02A029NA
Product Type Server
Controller Type 12Gb/s SAS
Serial ATA/600

RAID Supported No
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 12
Number of Internal 2.5″ Bays 12
Hot Swappable Bays Yes
Standard Memory 64 GB
Maximum Memory 768 GB
Memory Technology TruDDR4
Number of Total Memory Slots 24
Number of Occupied Memory Slots 2
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC

Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Maximum Power Supply Wattage 750 W
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 5118
Processor Core Dodeca-core (12 Core)
Processor Speed 2.30 GHz
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 1U
Height 1.7″
Width 17.1″
Depth 28.1″
