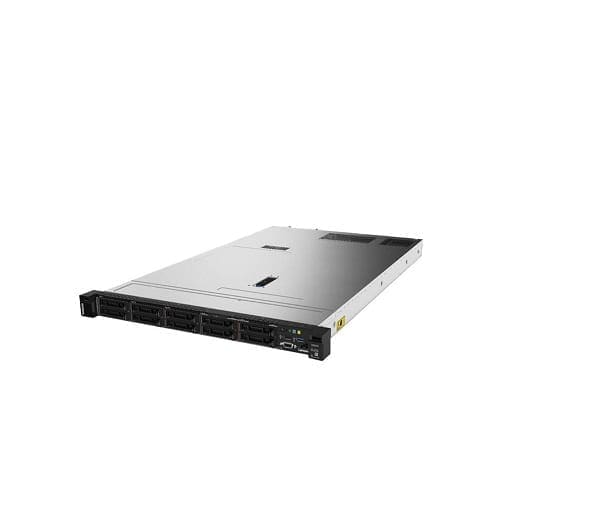

7X02A0CBNA Lenovo ThinkSystem SR630 – rack-mountable

7X02A0CBNA Overview

Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, system management, enterprise applications, collaboration/email, streaming media, web, and HPC.


Buy Now
Availability: In Stock

7X02A0CBNA Technical Specifications

Lenovo ThinkSystem SR630 – rack-mountable

Clock Speed :2.1 GHz
Installed Qty :1
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.7 GHz
Number of Cores :24-core
Processor Main Features :Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Virtualization Technology
Processor Number :6252
Server Scalability :2-way
Type :Xeon Gold
Audio Input
Type :None
Bay Provided
Form Factor :2.5″
Free Qty :8
Total Qty :8
Cache Memory
Installed Size :35.75 MB
Installed Size :35.75
Per Processor Size :35.75 MB
Per Processor Size :35.75
Type :None.
Brand :Lenovo
Manufacturer :Lenovo System X
Model :7X02
Packaged Quantity :1
Product Line :Lenovo ThinkSystem SR630
Interface Provided
Connector Type :RJ-45
Qty :1
Type :Management
Location :1 front, 1 rear
Qty :2
Type :VGA
Location :1 front, 2 rear
Qty :3
Type :USB 3.0
Location :1 in front
Type :USB 2.0
Chipset Type :Intel C624
Color Category :Black
Compliant Standards :AS/NZS CISPR 22, BSMI CNS 13438 Class A, BSMI CNS 14336-1, CB, CISPR 22 Class A, EK1-ITB2000, EN 60950-1, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 A, GB 17625.1, GB 4943.1, GB 9254 Class A, GOST ME01, GOST-R 51317.3.2, GOST-R 51317.3.3, GOST-R 51318.22, GOST-R 51318.24, ICES-003 Class A, IEC60950-1, KN22 Class A, KN24, NMB-3 Class A, NOM-019, RoHS, TUV GS, UL/CSA60950-1, VCCI Class A
Height (Rack Units) :1
Included Accessories :Tool-less rail kit
Remote Management Controller :XClarity Controller (XCC) Enterprise
OS Provided
Type :No operating system
Power Device
80 PLUS Certification :80 PLUS Platinum
Frequency Required :50/60 Hz
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :750 Watt
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Type :Power supply – hot-plug
