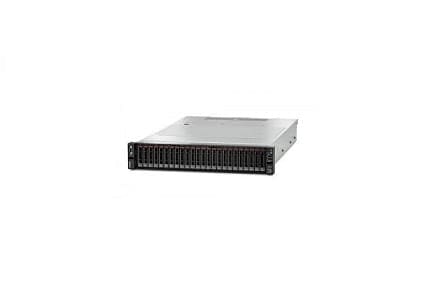

7X06A0BVCN Lenovo ThinkSystem SR650 Server

7X06A0BVCN Technical Specification

Lenovo ThinkSystem SR650 Server

Manufacturer: Lenovo
Form factor/height 2U rack server
Processor Up to two 2nd Generation Intel Xeon Platinum processors (up to 205W)
Memory Up to 9TB, 24x DIMM slots (using 128GB DIMMs) and Intel® Optane™ DC Persistent Memory, 2666/2933MHz TruDDR4
Expansion slot Up to 7 PCIe 3.0 with multiple riser options (with 1 dedicated PCIe slot for RAID adapter)
Drive bay Up to 14x 3.5″ or up to 24x 2.5″ hot-swap bays (up to 12x AnyBay bays and up to 24x NVMe bays). Up to 2xM.2 boot drives (RAID 1)
HBA/RAID support HW RAID (up to 24 ports) with flash cache, up to 16 ports HBA
Network interface 2/4-port 1GbE LOM, 2/4-port 10GbE LOM (Base-T or SFP+), 1 dedicated 1GbE management port
