7Y03A01SNA Technical Specifications

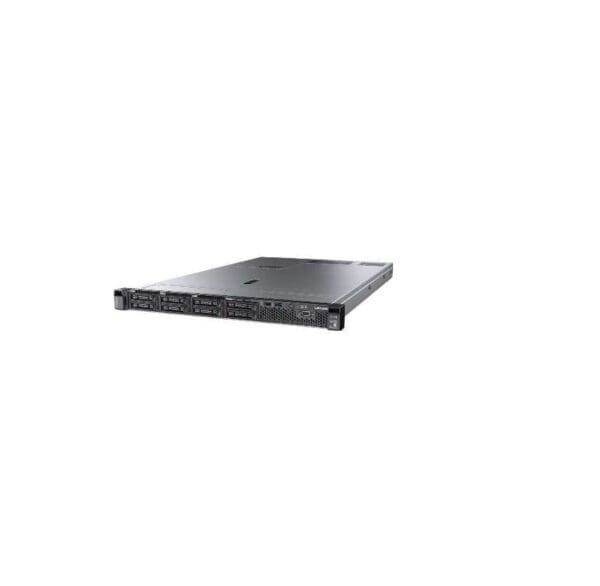

Lenovo Thinksystem SR570 Server 5118 16G
General Information
Product Name Thinksystem SR570 Server 5118 16G
Product Line ThinkSystem
Product Series SR570
Product Model 7Y03A01SNA
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 5, 10, 50
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 4
Number of 3.5″ Bays 4
Hot Swappable Bays Yes
Memory
Standard Memory 16 GB
Memory Technology TruDDR4
Number of Total Memory Slots 16
Number of Occupied Memory Slots 1
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Maximum Power Supply Wattage 750 W
Storage
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 1
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 5118
Processor Core Dodeca-core (12 Core)
Processor Speed 2.30 GHz
Software
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 1U
Height 1.7″
Width 17.1″
Depth 28.1″
