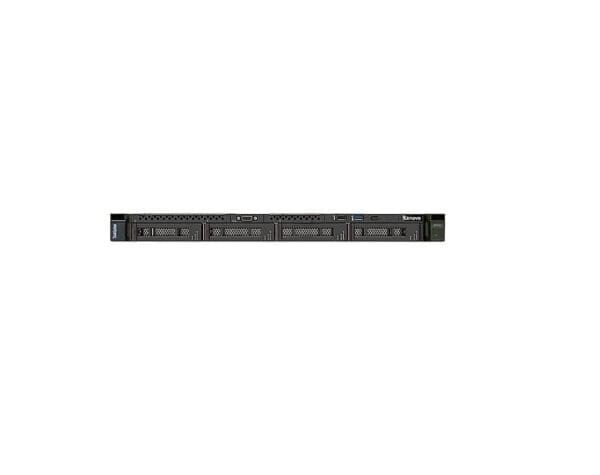

7Y03A06FNA Lenovo ThinkSystem SR570 – rack-mountable

 7Y03A06FNA Overview

The 1U Lenovo ThinkSystem SR570 rack server is an excellent fit for Big Data, web serving, and infrastructure scale-out. It’s designed for rack environments, that require peak memory and two-socket performance, flexible storage, outstanding value, and intuitive management. It can accelerate compute performance across a wide range of applications with a powerful processor. The SR570’s faster memory and greater memory capacity power larger workloads.


Buy Now
Availability: In Stock

 7Y03A06FNA Technical Specifications

Lenovo ThinkSystem SR570 – rack-mountable

Clock Speed :2.1 GHz
Installed Qty :1
Manufacturer :Intel Xeon
Max Supported Qty :2
Max Turbo Speed :3.2 GHz
Number of Cores :8 core Processor
Processor Main Features :Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Virtualization Technology
Processor Number :4208
Server Scalability :2-way
Type :Xeon Silver
Audio Input
Type :None
Bay Provided
Form Factor :3.5″ LFF
Free Qty :4
Total Qty :4
Cache Memory
Installed Size :11 MB
Installed Size :11
Per Processor Size :11 MB
Per Processor Size :11
Type :None.
Brand :Lenovo
Manufacturer :Lenovo System X
Model :7Y03
Packaged Quantity :1
Product Line :Lenovo ThinkSystem SR570
Interface Provided
Connector Type :RJ-45
Type :Management
Location :1 front, 2 rear
Qty :3
Type :USB 3.0
Location :1 in front
Qty :1
Type :USB 2.0
Qty :2
Type :LAN (Gigabit Ethernet)
Type :VGA
Chipset Type :Intel C622
Color Category :Black
Compliant Standards :AS/NZS CISPR 22, BSMI CNS 13438 Class A, BSMI CNS 14336-1, CB, CISPR 22 Class A, EK1-ITB2000, EN 60950-1, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 A, GB 17625.1, GB 4943.1, GB 9254 Class A, ICES-003 Class A, IEC60950-1, KN22 Class A, KN24, NMB-3 Class A, NOM-019, RoHS, TR CU 004/2011, TR CU 020/2011, TUV GS, UL/CSA60950-1, VCCI Class A
Height (Rack Units) :1
Included Accessories :Tool-less rail kit
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet Servers
Ethernet Ports :2 x Gigabit Ethernet
Remote Management Controller :XClarity Controller (XCC) Enterprise
OS Provided
Type :No operating system
Power Device
80 PLUS Certification :80 PLUS Platinum
Frequency Required :50/60 Hz
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :750 Watt
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Type :Power supply – hot plug
