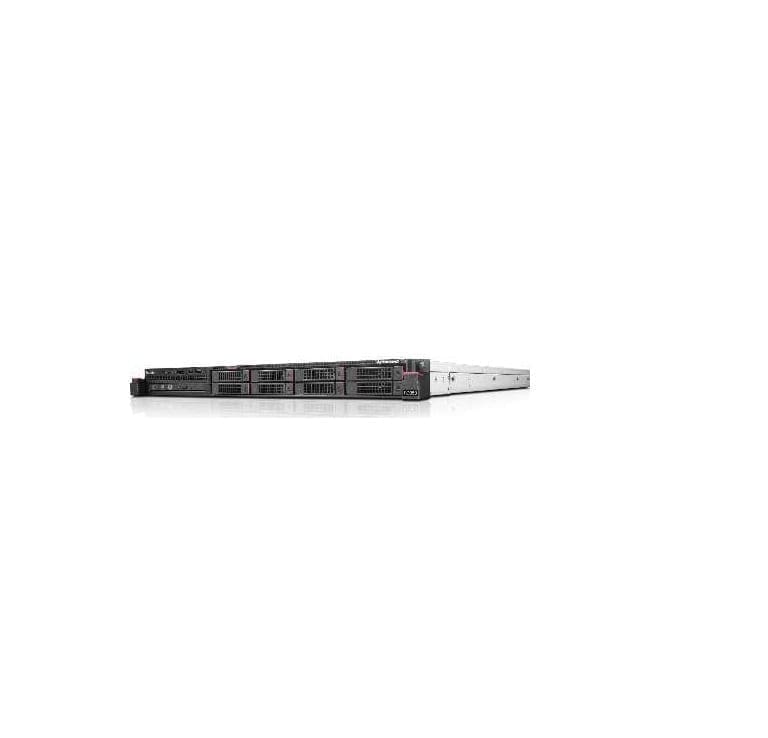

7Y52A00GNA Lenovo ThinkSystem SR250 – rack-mountable

7Y52A00GNA Technical Specifications

Lenovo ThinkSystem SR250 – rack-mountable

Bay Provided
Form Factor :2.5″
Free Qty :8
Total Qty :8
Cabinet
Chassis Built-in Devices :LED panel
Header
Brand :Lenovo
Country Kits :North America
Manufacturer :Lenovo System X
Model :7Y52
Packaged Quantity :1
Product Line :Lenovo ThinkSystem SR250
Interface Provided
Connector Type :RJ-45
Type :Management
Location :1 front, 1 rear
Type :VGA
Location :1 in front
Qty :1
Type :USB 2.0
Qty :2
Type :USB 3.1 Gen 2
Type :LAN (Gigabit Ethernet)
Type :Serial
Type :USB 3.1 Gen 1
Mainboard
Chipset Type :Intel C246
Miscellaneous
Color Category :Black
Compliant Standards :AS/NZS CISPR 32 Class A, ASHRAE Class A2, BIS, BSMI, CB, CCC, CECP, CISPR 32 Class A, CNS 13438 Class A, CNS 14336-1, EK1-ITB2000, EN 50581, EN 55032 Class A, EN 60950-1, EN 62368-1, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 B, GB 17625.1, GB 9254 Class A, GB4943.1, ICES-003 Class A, IEC 60950-1, IEC 62368-1, IEC60950-1, KN32 Class A, KN35, NOM-019, RoHS, TR CU 004/2011, TR CU 020/2011, TUV GS, UL 62368-1, VCCI Class A
Height (Rack Units) :1
Included Accessories :Tool-less rail kit
Manufacturer Selling Program :TopSeller
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Broadcom BCM5720
Ethernet Ports :2 x Gigabit Ethernet
Features :PXE support, Teaming support
Remote Management Controller :XClarity Controller (XCC) Enterprise
Optical Storage (2nd)
Drive Type :No optical drive
Type :None
OS Provided
Type :No operating system
Power Device
Frequency Required :50/60 Hz
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :450 Watt
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Type :Power supply – hot-plug
Printer
Type :None
Processor
Clock Speed :3.8 GHz
Installed Qty :1
Manufacturer :Intel
Max Supported Qty :1
Max Turbo Speed :4.7 GHz
Number of Cores :Quad-Core
Processor Number :E-2174G
Server Scalability :1-way
Type :Xeon
