Refurbished 821785-P01 Technical Specifications

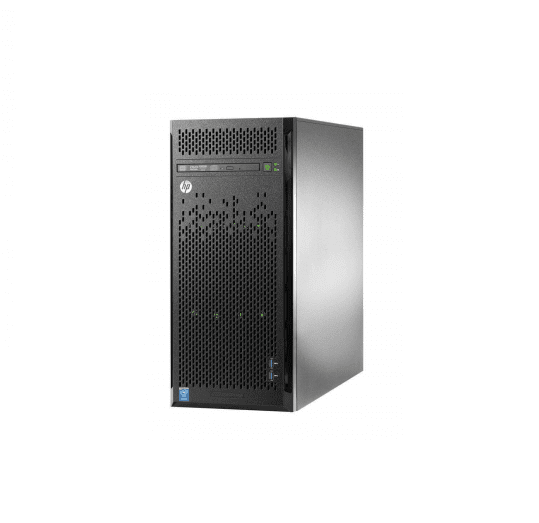

HP Proliant ML110 G9 1X Intel Xeon 4-Core E5-1603V3/ 2.8GHz, 8GB DDR4 SDRAM, Smart Array B140i Without Fbwc, 1GB 2-Port 330i Adapter, 1X 350W PS 4.5U Tower Server.
GENERAL INFORMATION :
Manufacturer : hewlett packard
Manufacturer part number : 821785-p01
Product name: proliant ML110 Gen9 – 4.5 u tower server
Micro Tower
PROCESSOR & CHIPSET :
Processor type : intel xeon e5-1603v3/ 2.8ghz
Quickpath interconnect : 0 gt/s
Number of cores : 4 core
64-bit computing : yes
Compatible processor socket : fclga2011-3
Installed qty : 1
Max supported qty : 1
Chipset type : intel c610 series
CACHE MEMORY :
Cache memory type : smart cache
Installed size : 10mb
Cache per processor : 10 mb
MEMORY :
Installed size : 8 gb / 256 gb (max)
Technology : ddr4 sdram – advanced ecc
Memory speed : 1866 mhz
Memory specification compliance : pc4-17000
Form factor : dimm 288-pin
RAM Slots: 8 x DDR4 RAM Slots
Features : registered, online spare memory, hp smartmemory
Ram Supported : Pc4-17000 – 128 Gb – Load-Reduced ¦ Pc4-17000 – 256 Gb – Registered
STORAGE:
Hard drive : none
optical drive : dvd-rw – sata
STORAGE CONTROLLERS:
Storage controller name : smart array b140i
Buffer size : none
Disk drive : up to 6gb/s sata (serial ata)
Connectors : 10 internal sata connectors
Server interface : x4 pcie 2.0
Sata speed : 6gb/s sata links
Logical drives supported : up to 8 logical volumes (6 physical drives)
Host memory addressing : 64-bit, supporting greater than 4gb server memory space
Raid support : raid 0, raid 1, raid 5, raid 10, raid 50
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Processor : Integrated Matrox G200eh
NETWORK & COMMUNICATION :
Networking type : integrated
Interface (bus) type : pci express x2
Ethernet ports : 2 x gigabit ethernet
Ethernet controller : hp 330i
Data link protocol : ethernet, fast ethernet, gigabit ethernet
Remote management controller : integrated lights-out 4
Features : wake on lan (wol), pxe support
Compliant standards : ieee 802.3, ieee 802.3u, ieee 802.3ab
POWER DESCRIPTION :
DEVICE TYPE : POWER SUPPLY
INSTALLED QTY : 1
MAX SUPPORTED QTY : 2
NOMINAL VOLTAGE : AC 100-230V (50/60 HZ)
POWER PROVIDED : 350 WATT
EXPANSION/ CONNECTIVITY :
EXPANSION BAYS TOTAL (FREE) :
1 (TOTAL) / 0 (FREE) X EXTERNAL 5.25
4 (TOTAL) / 4 (FREE) X INTERNAL 3.5 LFF
EXPANSION SLOTS TOTAL (FREE) :
8 (TOTAL) DIMM 288-PIN
1 (TOTAL) / 0 (FREE) X CPU
2 (TOTAL) / 2 (FREE) X PCIE 3.0 X8 – HALF-LENGTH, FULL-HEIGHT
2 (TOTAL) / 2 (FREE) X PCIE 3.0 X4 – HALF-LENGTH, FULL-HEIGHT
1 (TOTAL) / 1 (FREE) X PCIE 3.0 X16 – THREE-QUARTER-LENGTH, FULL-HEIGHT
1 (TOTAL) / 1 (FREE) X MICROSD CARD (INTERNAL)
INTERFACES & PORTS :
1 X VGA ( 1 REAR )
2 X LAN (GIGABIT ETHERNET)
1 X HP ILO
5 X USB 3.0 ( 2 FRONT, 2 REAR, 1 INTERNAL )
3 X USB 2.0 ( 2 REAR, 1 INTERNAL )
