Refurbished 830577-S01 Technical Specifications

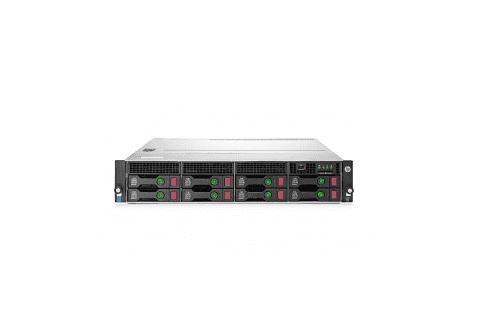

HP Proliant DL160 GEN9 Smart Buy 1X Intel Xeon 8-Core E5-2620V4/ 2.1GHZ, 8GB(1X8GB) DDR4 SDRAM, Smart Array P440 With 4GB FBWC + Smart Storage Battery, 8SFF, 1GB 2-Port NC361I Adapter, 1X 900W PS 1U Rack-Mountable Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 830577-S01
Product Name : Proliant Dl160 Gen9 – 1U Rack Mount Server (Smart Buy Model)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2620V4 / 2.1 GHz
Max Turbo Speed : 3 GHz
Quick path Interconnect : 8 GT/S
Number Of Cores : 8 Core
64-Bit Computing : Yes
Compatible Processor Socket : FCLGA2011-3
Installed Qty : 1
Max Supported Qty : 2
Processor Main Features : Intel Turbo Boost Technology 2
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 20 MB
Cache Per Processor : 20 MB
MEMORY :
Installed Size : 8 GB / 512 GB (Max)
Technology : Ddr4 Sdram – Advanced ECC
Memory Speed : 2133 MHz
FORM FACTOR : DIMM 288-Pin
Memory Slots: 16 x DDR4 RAM Slots
Features : Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features : 1 X 8 GB
Ram Supported : 512 GB – Registered – Advanced ECC ¦ 1 TB – Load-Reduced – Advanced ECC
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Type : 1 X SAS
Controller Interface Type : SAS
Storage Controller Name : Smart Array P440 With 4GB FBWC
Channel Qty : 8
Buffer Size : 4 Gb
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated Matrox G200EH2
NETWORK & COMMUNICATION :
Interface (Bus) Type : PCI Express 2.0 X2
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : HP 361I
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On LAN (WOL), PXE Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.1AS, IEEE 802.3AZ
POWER DESCRIPTION :
Device Type : Power Supply
Installed Qty : 1
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 900 Watt
80 Plus Certification : 80 Plus Gold
Efficiency : 92%
