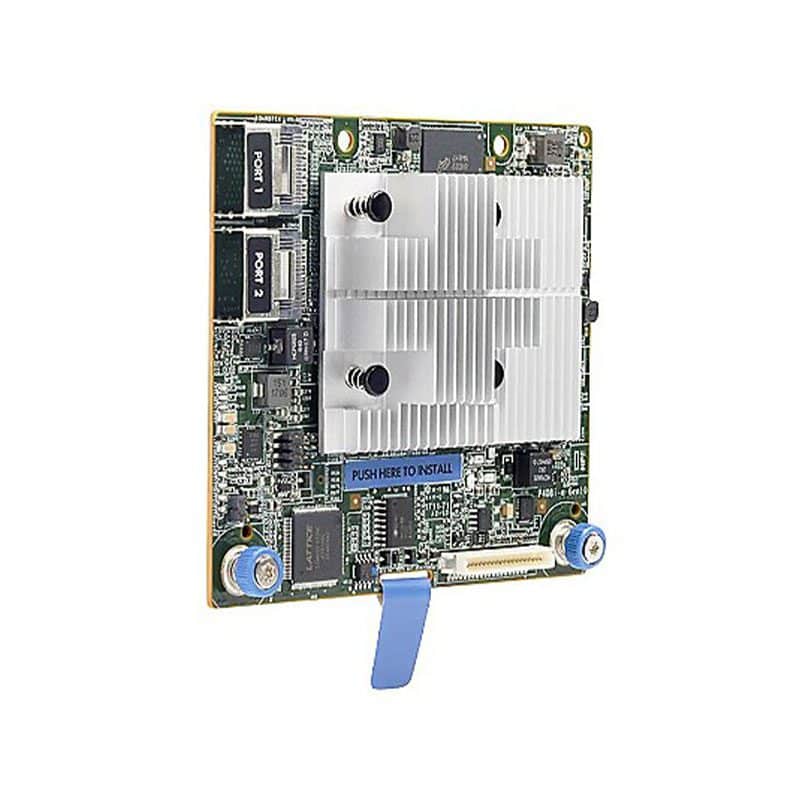

869081-B21#0D1 Technical Specifications
HPE Smart Array P408I-A SR Gen10 Storage Controller (RAID) SATA 6Gb/s /
Manufacturer
HP CTO Server Avnet
Brand
HPE
Product Line
HPE Smart Array
Model
P408I-A SR Gen10
Packaged Quantity
1
General
Product Type
Storage controller (RAID)
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 3.0 x8
Data Transfer Rate
12 Gbit/s
Interface
SATA 6Gb/s / SAS 12Gb/s
Channel Qty
8
Supported Devices
Disk array (RAID), Hard drive
Buffer Size
2 GB
Maximum LUNs
64
RAID Level
RAID 0, RAID 1, RAID 1 ADM, RAID 10, RAID 10 ADM, RAID 5, RAID 50, RAID 6, RAID 60
Bay Adapter
Features
Low profile heatsink
Interface Provided
Interfaces
2 x SATA 6Gb/s / SAS 12Gb/s (internal)
Power Device
Type
None
System Requirements
OS Required
CentOS, Citrix XenServer, ClearOS, Microsoft Windows Hyper-V Server, Microsoft Windows Server, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, VMware vSphere (ESXi)
Miscellaneous
Color Category
Green, Silver
Pricing Type
Factory integrated
Compliant Standards
FIPS 140-2 Level 1
