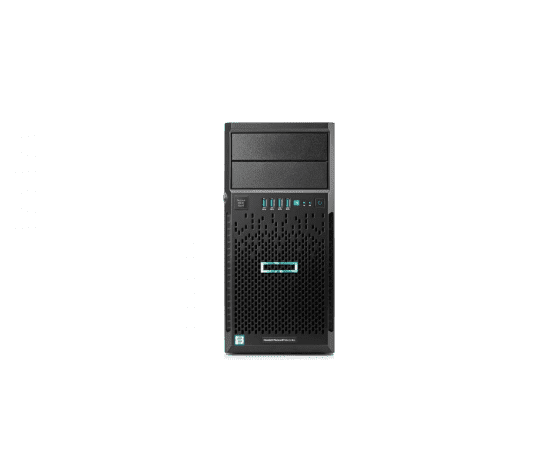

Refurbished 872659-001 HP Proliant ML30 Gen9 Server

Refurbished 872659-001 Technical Specifications

HP Proliant ML30 Gen9 Performance Model 1X Intel Xeon Quad-Core E3-1240V6/ 3.7GHz, 8GB DDR4 SDRAM, Smart Array B140I, 1GB 2-Port Broadcom 5720 Adapter, 1X 460W RPS 4U Tower Server.

GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 872659-001
Product Name: HPE Proliant Ml30 Gen9 – 4u Rack Mount (Base Model)
PROCESSOR & CHIPSET :
CPU : Intel Xeon E3-1240v6 / 3.7GHz
Max Turbo Speed : 4.1 GHz
Number Of Cores : Quad-Core (4 core)
Cpu Qty : 1
Max Cpu Qty : 1
Cpu Upgradability : Upgradable
Processor Main Features : Intel Turbo Boost Technology 2, Intel Smart Cache
Cpu Socket : Lga1151 Socket
Chipset Type : Intel C236
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 8mb
Cache Per Processor : 8 MB
MEMORY :
Installed Size : 8 Gb / 64 Gb (Max)
Technology : Ddr4 Sdram – Ecc
Effective Memory Speed : 2400 Mhz
Rated Memory Speed : 2400 Mhz
Form Factor : Dimm 288-Pin
RAM Slots :4 x DDR4 RAM Slots,
Features : Unbuffered
Configuration Features : 1 X 8 Gb
Ram Supported : 64 Gb
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Type : 1 X Raid – Pcie X4
Controller Interface Type : Sata 6gb/S
Storage Controller Name : Hp Dynamic Smart Array B140i
Channel Qty : 10
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated Matrox G200
NETWORK & COMMUNICATION:
Interface (Bus) Type : Pci Express X2
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5720
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION :
Device Type : Power Supply
Installed Qty : 1
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 460 Watt
Expansion/ Connectivity :
Expansion Bays Total (free) :
1 (total) / 1 (free) X External 5.25
4 (total) / 4 (free) X Hot-swap 3.5 Lff
Expansion Slots Total (free) :
4 (total) / 3 (free) X Dimm 288-pin
1 (total) / 0 (free) X Cpu
1 (total) / 1 (free) X Pcie 3.0 X16 – Full-length, Full-height
2 (total) / 2 (free) X Pcie 3.0 X4 – Full-length, Full-height (x1 Mode)
1 (total) / 1 (free) X Pcie 3.0 X8 – Half-length, Full-height (x4 Mode)
1 (total) / 1 (free) X Microsd Card (internal)
