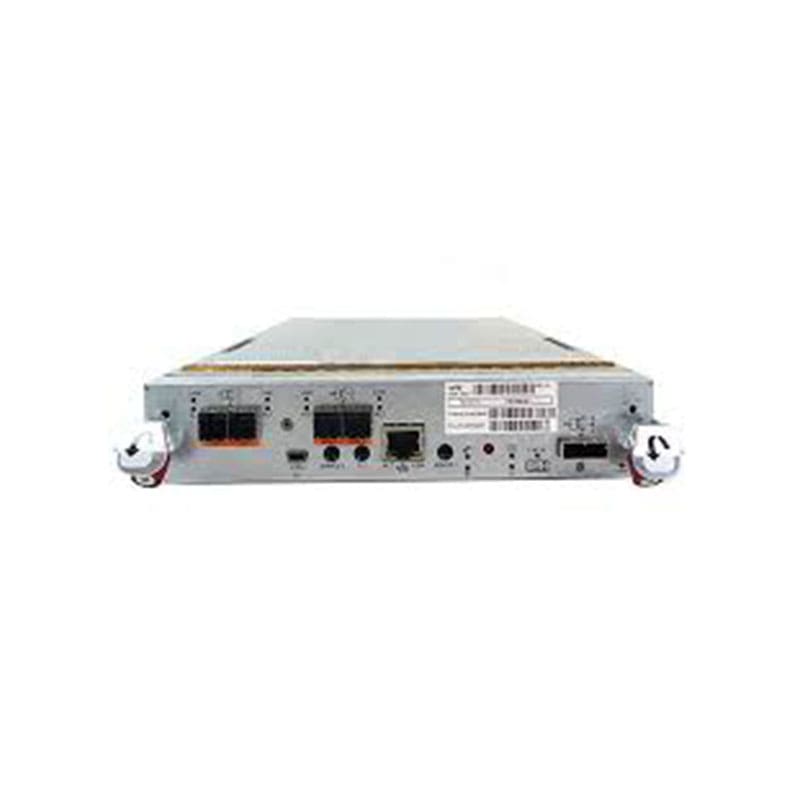

876129-001 HPE MSA 2050 SAS Dual Controller Storage
876129-001 Overview
The MSA 2050 supports SAS and SATA hard disk drives (HDDs) and solid-state drives (SSDs) with a maximum raw capacity of 480TB.
It supports up to 24 small form factor (SFF) drive bays and up to 12 large form factor (LFF) drive bays.
Scalability:
The MSA 2050 supports online capacity expansion (OCE) and online RAID level migration (RLM), allowing you to add or replace drives without disrupting ongoing operations.
$750
876129-001 Technical Specifications
MSA 2050 Serial-Attached SCSI (SAS) Dual Controller Small Form Factor (SFF) Storage
Part Number or SKU# 876129-001
Manufacturer: HPE
Type: Storage Controller
Technical Information for Storage Controller
Installed Devices / Modules Qty: 2
Device Type: MSA 2050 Controller
Enclosure Type: Rack-mountable – 2U
Supported Devices / Modules Qty: 24
Supported Drives: SAS-3
Type: RAID (iSCSI)
Installed Qty: 2
Interface Type: SAS 12GBPS
Data Transfer Rate: 1.2 GBPS
Cache / Buffer Size (Max): 8 GB
RAID Level: RAID 1, RAID 5, RAID 6, RAID 10
Power Consumption of SAS 12GBPS Controller
Power Device: 2 x internal power supply – hot-plug
Max Supported Qty: 2
Power Redundancy: Yes
Voltage Required: AC 120/230 V – 50/60 Hz
Power Consumption Operational: 374 Watt
