881230-001 HP 100gbe 16 Qsfp28 Half Width Switch 16 Ports Managed Rack Mountable
881230-001 Overview

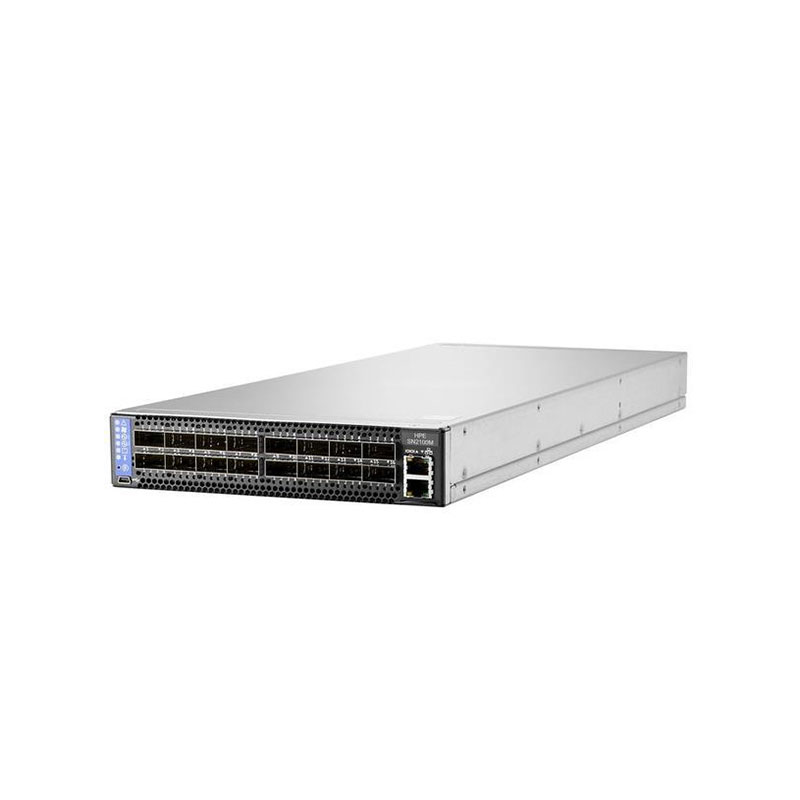

The HP 881230-001 100GbE 16-Port QSFP28 Half-Width Switch is a high-performance, rack-mountable, managed Ethernet switch designed for enterprise data centers and high-performance networking environments. It features 16 QSFP28 ports, each capable of 100GbE throughput, providing high-bandwidth, low-latency connectivity for servers, storage systems, and network aggregation.Its half-width form factor allows for high-density deployments, making it ideal for data centers where rack space is limited but high-speed connectivity is required. Being a managed switch, it offers advanced features such as VLANs, link aggregation (LACP), QoS, traffic monitoring, and Layer 2/3 support, enabling administrators to optimize and control network traffic efficiently.
881230-001 Technical Specifications
HP 100gbe 16 Qsfp28 Half Width Switch 16 Ports Managed Rack Mountable
Manufacturer Part Number: 881230-001
Brand Name: HP
Product Type: 100GbE Managed Switch
Form Factor: Half-Width 1U Rack-mountable
Number of Ports: 16 Active
Port Type: QSFP28
Port Speed: 100Gbps per port
Expansion Slots: 16 x QSFP28
Aggregate Bandwidth: 1.6Tbps full duplex
Management: Managed via Web Tools, CLI, SNMP
Advanced Features: VLAN, LACP, QoS, Layer 2/3 Support
Security: Role-Based Access Control
Scalability: Stackable via QSFP uplinks
Hot-Swappable Components: Yes
Redundant Power Supplies: Supported
Cooling: Front-to-Back Airflow, Integrated Fans
Power Consumption: Energy Efficient
Environmentally Friendly: Yes
Environmental Certification: RoHS Compliant
Operating Temperature: 0°C to 45°C
Operating Humidity: 10% to 90% Non-Condensing
Weight: Approx 18 lbs (8.2 kg)
