9210-8I Lsi Logic 8 Port 6Gb/s Sas-Sata Pci Express Host Bus Adapter Raid Controller
9210-8I Overview

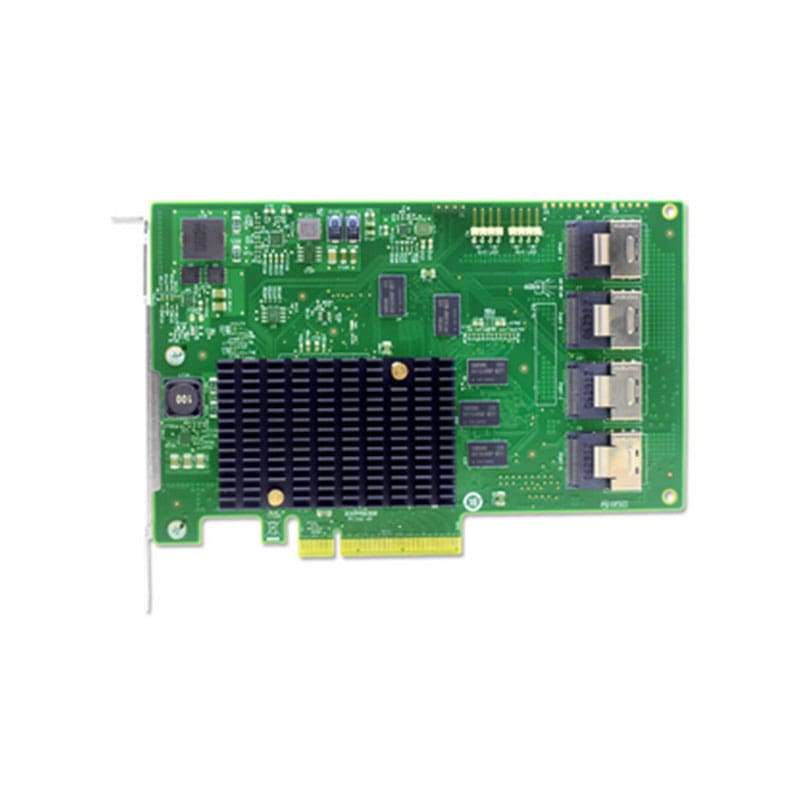

The 9210-8I LSI Logic RAID controller is a high-performance device designed for use in servers, workstations, and other computing systems. It supports both SAS and SATA devices and can be used with a wide range of storage devices, including hard drives, solid-state drives, and tape drives.
The controller has eight ports, allowing it to connect up to eight storage devices to the computer system. Each port supports transfer rates of up to 6Gb/s, providing high-speed data transfer for even the most demanding applications.
$55
9210-8I Technical Specifications
Lsi Logic 8 Port 6Gb/s Sas-Sata Pci Express Host Bus Adapter Raid Controller
Manufacturer: Lsi Logic
Part Number or SKU# 9210-8I
Product Type: Controller
Product Name: SAS-SATA
Physical Dimensions
Low Profile (2.6″ X 6.6″)
Devices Supported : 256 Non-raid Sas/sata Devices
Fusion Mpt Support : Fusion Mpt 2.0
Internal Connectors: 2 Mini-sas Sff8087 (vertival)
Operating Temperature: 0°c To 55°c
Operating Voltage (v) : +12v +/-8%, 3.3v +/-8%
Os Support : Microsoft Windows, Linux (suse , Red Hat), Solaris, Vmware, Freebsd
Pci Power: 7w Typical (airflow Min 200 Lfm)
Cable Support : Passive Copper
