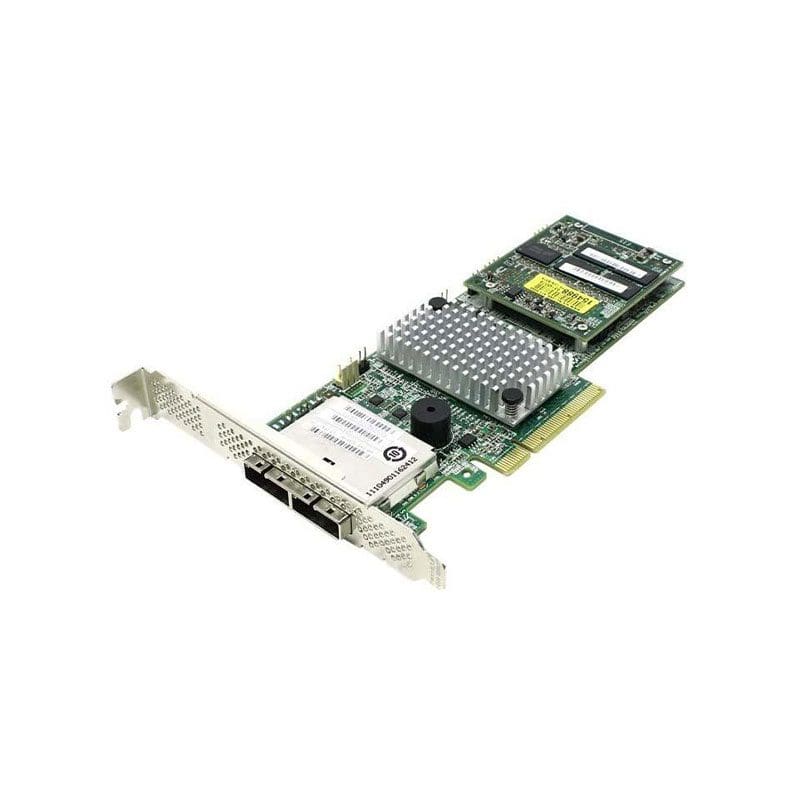

9286-8e Technical Specifications
LSI LOGIC 6gb Megaraid Sas 8port Pci-express 3.0 Sas Sata Raid Controller With 1gb Cache
Manufacturer; LSI LOGIC
Manufacturer; 9286-8e
Product Name: Megaraid 9286-8e 8-port Sas Controller
Product Type: Sas Controller
Host Interface: Pci Express 3.0 X8
Data Transfer Rate: 768 Mbps Per Port
Interfaces: Serial Attached Scsi (sas), Serial Ata/600
Raid Supported: Yes
Raid Levels: 0, 1, 10, 50, 60, 5, 6
Data Backup Type: Battery Backup
Standard Memory: 1 Gb Ddr3 Sdram
Ports: 2 X Sff-8087 6gb/s Sas – Mini-sas Internal
Height: 2.5
Width: 6.6
Form Factor: Low-profile Plug-in Card
