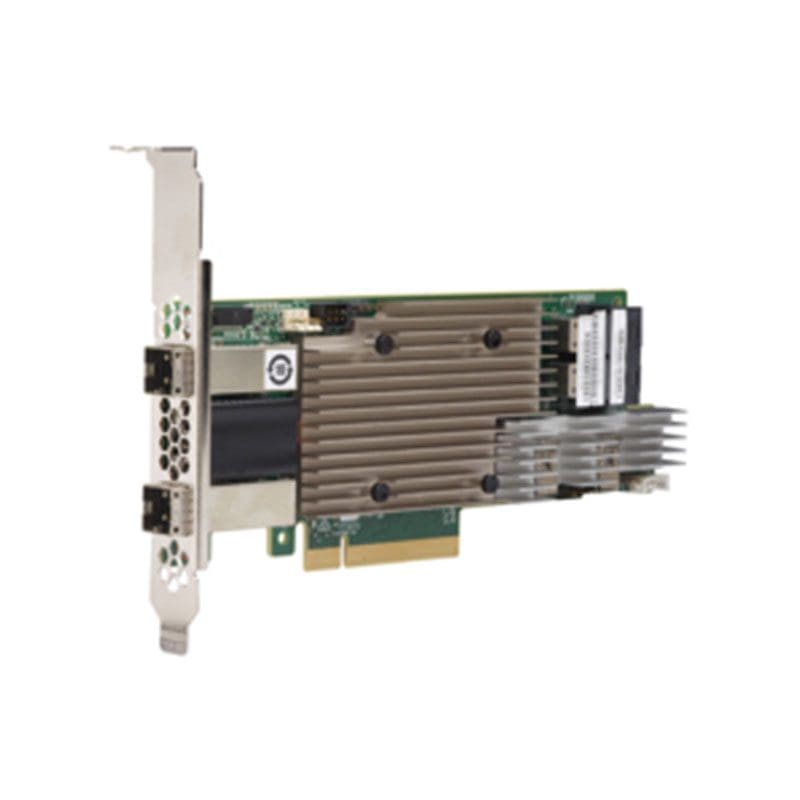

9380-8I8E Technical Specifications
LSI Logic Sas 8 Internal 8 External Ports Raid 0/1/5/50/6 Pci-exp 3.0, 2g Ddriii, Md2, No Cbl W/sw/lp Bracket
Raid-on-chip Controller Sas3316 Dual Core Raid On Chip (roc)
Generation 12 Gb/s
External Ports 8
External Connectors 2 Mini-sas Hd Sff8644
Raid Management Software Lsa (lsi Storage Authority), Megaraid Storage Manager, Storcli (command-line Interface), Ctrl-r (bios Configuration Utility), Hii (uefi Human Interface Infrastructure)
Cache Protection Cvpm02 Cachevault Power Module
Host Bus Type X8 Lane Pci Express® 3.0
Cache Memory 2gb 1866mhz Ddr3 Sdram
Physical Dimensions 6.600 X 2.712
Internal Ports 8
Data Transfer Rates Up To 12gb/s Per Port
Devices Supported Up To 240 Sata And/or Sas Devices
Internal Connectors 2 Mini-sas Hd Sff8643
Mtbf > 2,500,000 Hours
Operating Temperature Maximum Ambient: Controller Card: 55°c, With Optional Cachevault Accessory Cvpm02 55°c
Operating Voltage(v) +3.3v, +12v
Os Microsoft Windows, Linux (oracle, Suse, Red Hat), Solaris, Vmware, Freebsd, Centos, Canonical, Citrix, Fedora, Debian.
