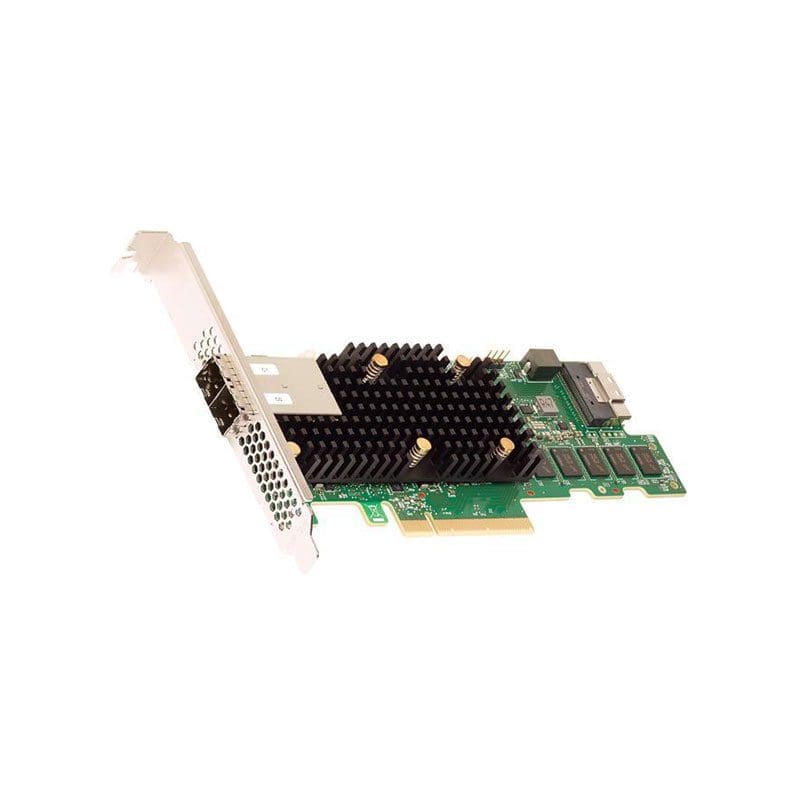

9580-8i8e Broadcom 12Gb/s x8 PCIe 4.0 SAS RAID Controller
9580-8i8e Overview
The Broadcom MegaRAID 9500 is a storage adapter, specifically a RAID (Redundant Array of Independent Disks) controller card, which plays a crucial role in managing data storage in servers and other computing systems. It is designed and manufactured by Broadcom Inc., a prominent technology company known for its innovations in semiconductors, connectivity solutions, and infrastructure software.
9580-8i8e Technical Specificati0ns
Broadcom 12Gb/s x8 PCIe 4.0 SAS RAID Controller
Brand : Broadcom
Manufacturer Part Number : 9580-8i8e
Product Type : RAID Controller
Data Transfer Rate : 12Gbps
External Ports 8
External Connectors 2 x4 SFF-8644
Cache Protection CacheVault CVPM05
Physical Dimensions 6.600″ x 2.712″
Host Bus Type x8 lane PCI Express 4.0
Cache Memory 8GB
Internal Ports 8
Data Transfer Rates 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported SAS/SATA: 240, NVMe: 24
Internal Connectors 2 x8 SFF-8654 (SlimSAS)
MTBF >3,000,000 hours at 40° C
Operating Temperature 0°C to 55°C
