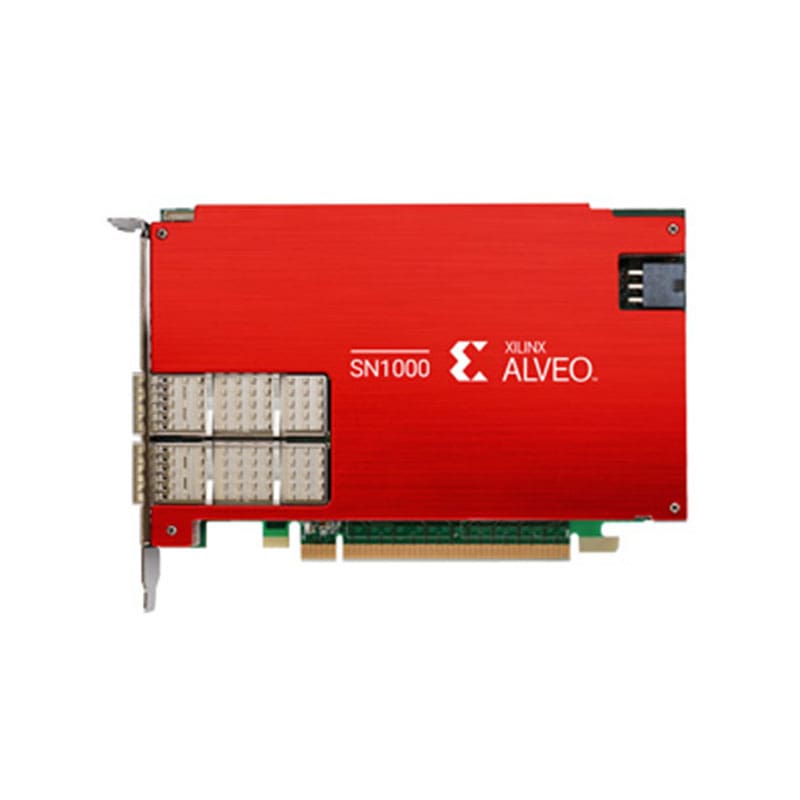

A-SN1022-P4E-PQ Xilinx Alveo SN1022 Network Adapter PCIe 4.0 x8 100 Gigabit QSFP28 x 2
A-SN1022-P4E-PQ Overview
The Xilinx Alveo SN1000 is the first SmartNIC offering software-defined hardware acceleration for all function offloads in a single platform. SN1000 SmartNICs directly offload CPU-intensive tasks to optimize networking performance, with an architecture that can accelerate a broad range of custom offloads at a line rate, including support for customer-built and third-party offloads.
$2,991
A-SN1022-P4E-PQ Technical Specifications
Xilinx Alveo SN1022 Network Adapter PCIe 4.0 x8 100 Gigabit QSFP28 x 2
Brand: Xilinx
Product Line: Xilinx Alveo
Model: SN1022
Manufacturer: ilinx
Processor
Clock Speed: 2 GHZ
Memory
RAM Installed: 12 GB
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 100 Gigabit Ethernet
Form Factor: Plug-in card
Host Interface: PCI Express 4.0 x8
Network Standard: IPSec, TCP/IP, UDP/IP
Product Type: Network adapter
Connectivity
Interface Provided: 2 x 100Gb Ethernet – QSFP28
Port Quantity: 2
Network & Adapter Ports: 100 Gigabit QSFP28
Power
Power Consumption Operational: 75 watt
Technical Information
Encryption: SSL, TLS
Max Operating Temperature: 86 degree Fahrenheit
Operating Humidity: 8 – 90%
Product Information
Dimensions & Weight
Height: 4.4 inch
Width: 0.7 inch
Depth: 6.6 inch
Physical Characteristics
Color Category: Red, Silver
