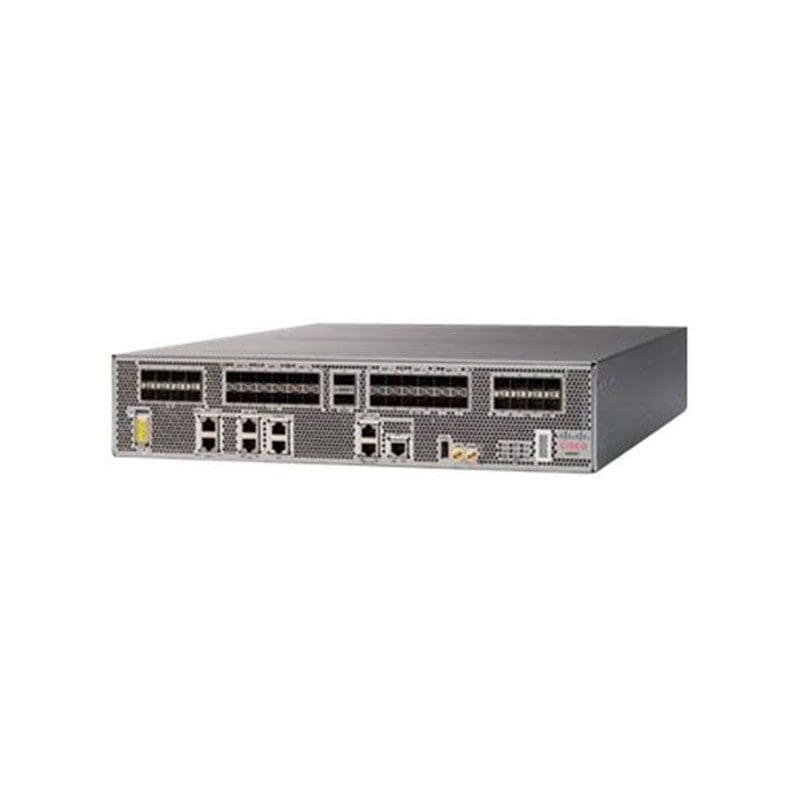

A99-32X100GE-TR Cisco card Gen 4 expansion module

 A99-32X100GE-TR Overview

The Cisco ASR 9900 Series 32-port 100 Gigabit Ethernet line cards deliver high density, with line-rate 100 Gigabit Ethernet ports, to any slot of a Cisco ASR 9900 Series aggregation services router. These high-capacity line cards are designed to remove bandwidth bottlenecks in the network that are caused by a large increase in Video-on-Demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic. A single 100 Gigabit Ethernet port can now replace large 10 Gigabit Ethernet link aggregation bundles to simplify network operations. Based on QSFP technology

$2,399,899

Buy Now
Availability: In Stock
SKU:A99-32X100GE-TR
Brand:

A99-32X100GE-TR Technical Specification

Cisco TR Gen 4 Expansion module

Compatibility Information
Designed For Cisco ASR 9904, 9906, 9906 TH, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, IEC 60825, VCCI Class A, ETSI 300 019, IEC/UL/CSA/EN 60950-1, EN 300 386, ITU Y.1731
Networking
Ports 100 Gigabit Ethernet QSFP x 32
Connectivity Technology Wired
Data Link Protocol 100 Gigabit Ethernet
Data Transfer Rate 100 Gbps
Features Flow control, full duplex capability, MPLS support, NetFlow, Virtual Circuit Connectivity Verification (VCCV)
Compliant Standards IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ba
Dimensions & Weight
Width 15.6 in
Depth 23.8 in
Height 1.6 in
Weight 0.44 oz
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
General
Device Type Expansion module
Form Factor Plug-in module
Expansion / Connectivity
Interfaces 32 x 100Gb Ethernet – QSFP
Software / System Requirements
OS Required Cisco IOS XR 6.5.15
