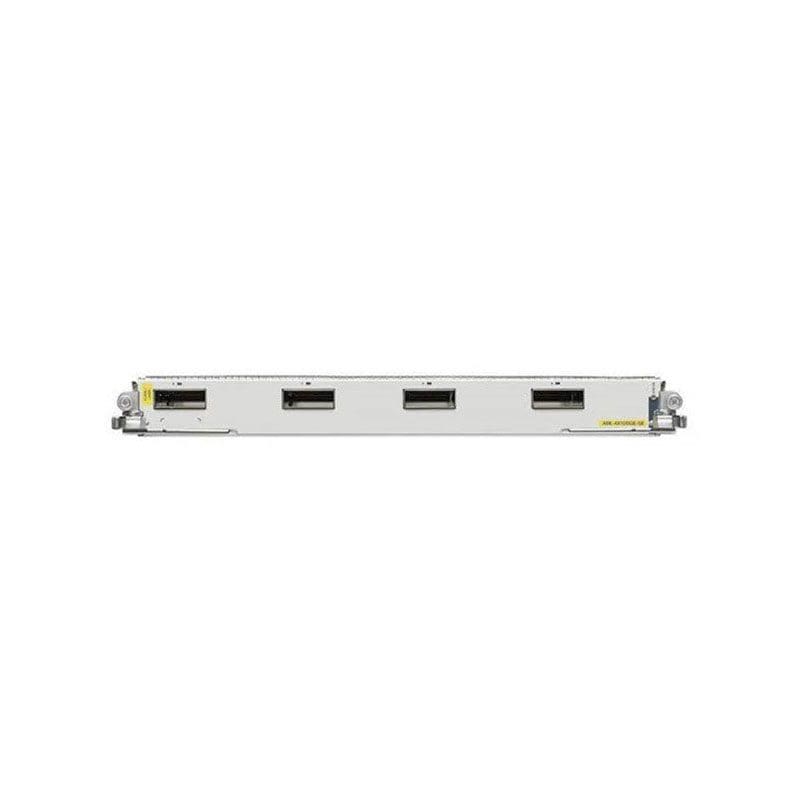

A9K-4X100GE-TR Cisco ASR 9000 Series Packet Transport

A9K-4X100GE-TR Overview

The Cisco ASR 9000 Series modular line cards provide customers with a flexible solution supporting multiple combinations of Ethernet ports, all in a single slot of the Cisco ASR 9000 Series Aggregation Services Routers. Modular line cards support a wide range of interfaces and densities offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco ASR 9000 modular line cards and modular port adapter portfolio continues the Cisco focus on investment protection along with consistent feature support, broad interface availability, and the latest technology.


Buy Now
Availability: In Stock

A9K-4X100GE-TR Technical Specification

Cisco ASR 9000 Series Packet Transport

Brand: Cisco
Product Line: Cisco ASR 9000 Series
Model: Packet Transport Optimized Line Card
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 100 Gigabit Ethernet
Data Transfer Rate: 100 GBps
Features: Flow control, Full duplex capability, MPLS support, NetFlow, Quality of Service (QoS), Virtual Circuit Connectivity Verification (VCCV)
Form Factor: Plug-in module
Product Type: Expansion module
Interface Provided: 4 x 100Gb Ethernet – CPAK
Port Quantity: 4
Network & Adapter Ports: 100 Gigabit CPAK
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 41 degree Fahrenheit
Operating Humidity: 10 – 85%
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 14.5 inch
Weight: 28 lbs
Width: 1.6 inch
Depth: 22 inch
