Refurbished A9K-MPA-20X10GE Technical Specification

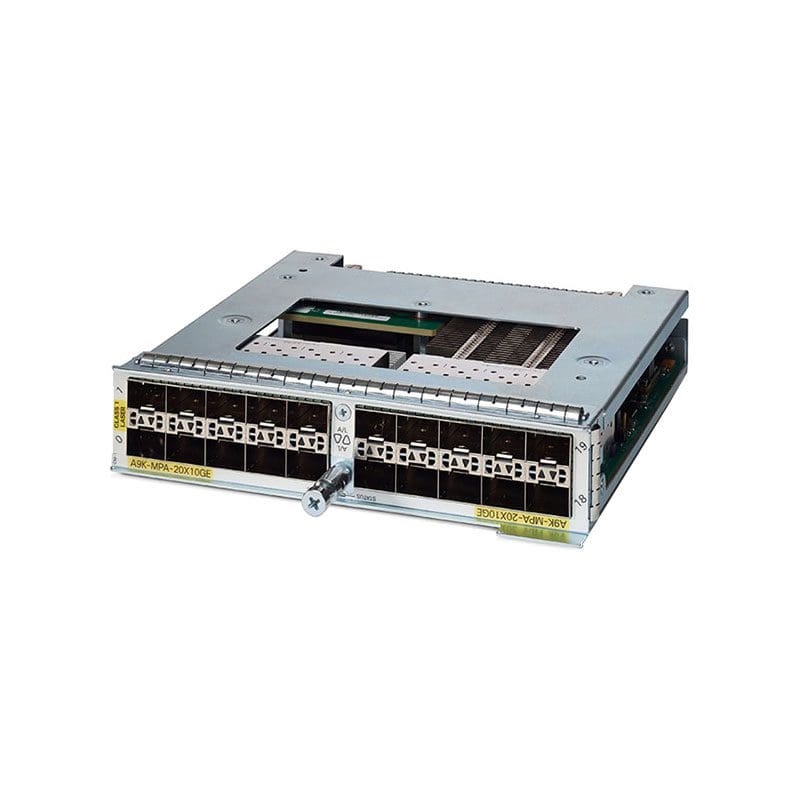

Cisco ASR 9000 Series Ethernet Modular
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco ASR 9000 Series
Model :Ethernet Modular Port Adapter
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet
Data Transfer Rate :10 GBps
Features :Flow control, Full duplex capability, Layer 2 switching, Layer 3 switching, MPLS support, NetFlow, Quality of Service (QoS)
Compliant Standards :IEEE 802.1ag, IEEE 802.3ah, IEEE 802.3x, ITU-T G.709
Ports
Qty :20
Type :10 Gigabit SFP+
Interface Provided
Interfaces :20 x 10Gb Ethernet – SFP+
Miscellaneous
Compliant Standards :AS/NZ 3548 Class A, BSMI Class A, CISPR 22 Class A, CSA C22.2 No. 60950-1, EN 300 386, EN 60825, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN300-386, EN50082-1, EN55022, EN55024, ETSI, FCC Class A certified, FDA, GR-1089-CORE, ICES-003 Class A, IEC 60950-1, Laser Class 1, NEBS level 3, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :6.4 inch
Depth :6.7 inch
Height :1.4 inch
Weight :34.92 ounce
Service & Support
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 85%
Compatibility
Compatible With :Cisco ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2
