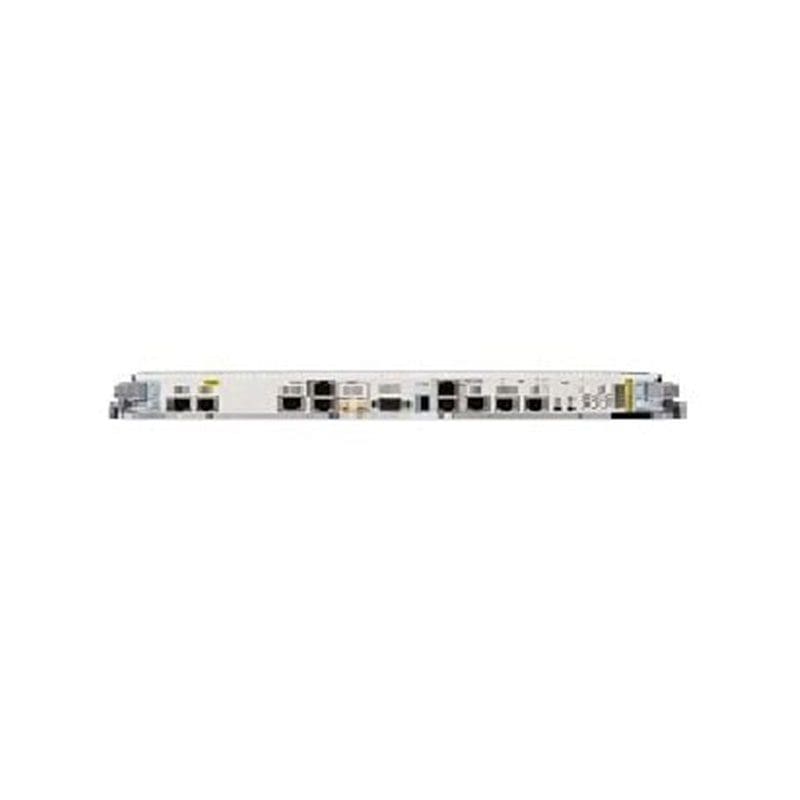

Refurbished A9K-RSP880-LT-SE Technical Specification
Cisco Route Switch Processor
General
Device Type Control processor
Width 15.9 in
Depth 24.6 in
Height 1.6 in
Weight 20.39 lbs
Processor / Memory / Storage
RAM 32 GB
Flash Memory 8 GB
Hard Drive SSD 128 GB x 2
Networking
Form Factor Plug-in module
Connectivity Technology Wired
Status Indicators Power, HDD activity, status, alarm
Expansion / Connectivity
Interfaces 2 x 1000Base-T (management) – RJ-45 ¦ 1 x console – RJ-45 ¦ 1 x auxiliary – RJ-45 ¦ 1 x RS-232/422 ¦ 1 x USB 2.0 – Type A
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, ICES-003 Class A, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, EN 50121-4, GR-1089-CORE, VCCI Class A, GR-63-CORE, IEC/UL/CSA/EN 60950-1, EN 300 386, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEEE 1588, SR-3580 NEBS Level 3, ETSI 300 019-2-3, ETSI 300 019-1-1, ETSI 300 019-3-1, IEC/EN 61000-3-3, IEC/EN 60825
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95%
Compatibility Information
Designed For Cisco ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904, 9906, 9906 TH, 9910, 9910 Chassis
