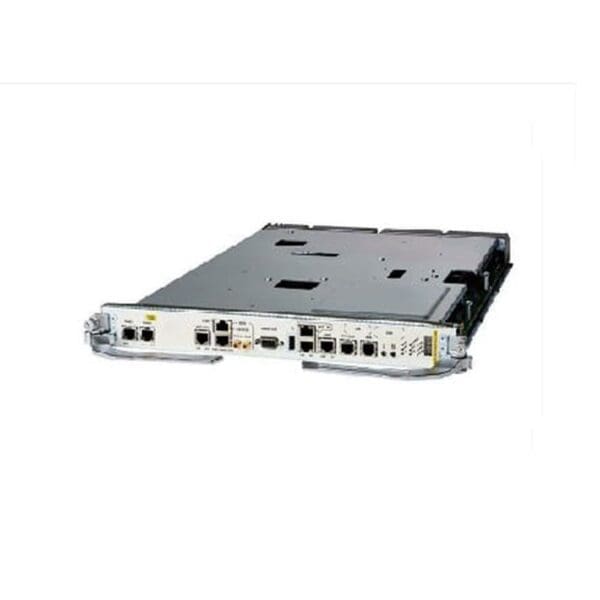

Refurbished A9K-RSP880-LT-TR Cisco ASR 9000 Route Switch Processor

Refurbished A9K-RSP880-LT-TR Technical Specification

Cisco ASR 9000 Route Switch Processor

Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco ASR 9000 Route Switch Processor
Model :880 for Packet Transport
Packaged Quantity :1
RAM
Installed Size :16 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :128 GB
Networking
Type :Control processor
Form Factor :Plug-in module
Connectivity Technology :Wired
Status Indicators :Alarm, HDD activity, Power, Status
Interface Provided
Interfaces :1 x alarm – DB-9, 1 x auxiliary – RJ-45, 1 x console – RJ-45, 1 x RS-232/422, 1 x USB 2.0 – Type A, 2 x 1000Base-T (management) – RJ-45
Miscellaneous
Color Category :Gray
Compliant Standards :ACA TS001, AS/NZS 3548 Class A, AS/NZS 60950, BSMI Class A, CISPR 22 Class A, EN 300 386, EN 300386, EN 50121-4, EN 60825, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN50082-1, EN55022, EN55024, FCC Class A certified, FDA, GR-1089-CORE, GR-63-CORE, ICES-003 Class A, IEC 60825, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC/UL/CSA/EN 60950-1, IEEE 1588, VCCI Class A
Dimensions & Weight
Width :16.9 inch
Depth :24.8 inch
Height :1.8 inch
Weight :17.79 lbs
Service & Support
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 85% (non-condensing)
Compatibility
Compatible With :Cisco ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904, 9906, 9906 TH, 9910, 9910 Chassis
