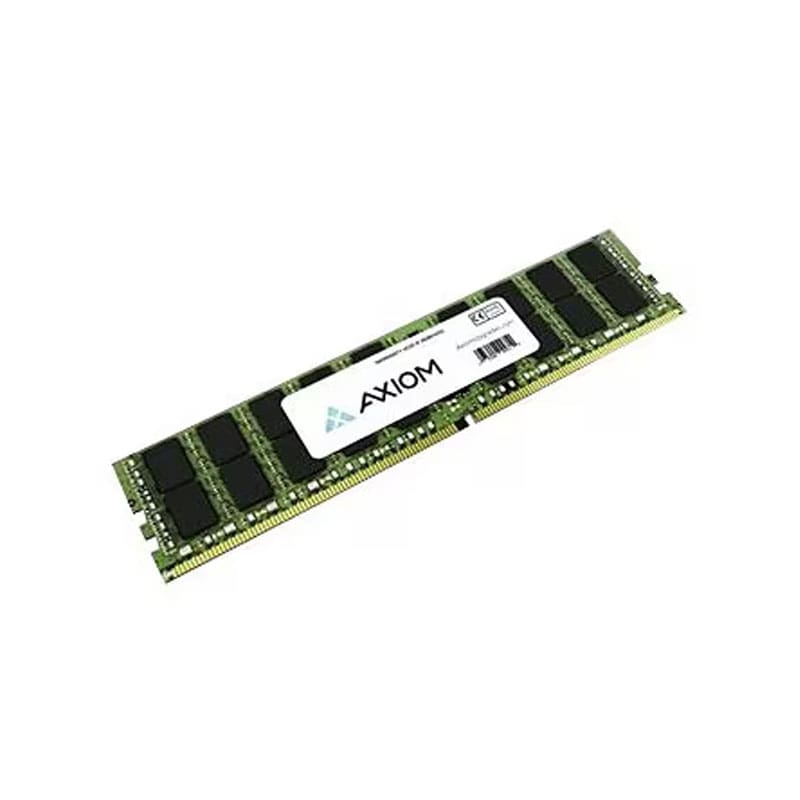

AB445285-AX Axiom AX DDR4 module 128 GB LRDIMM 288-pin 3200 MHz / PC4-25600 LRDIMM

AB445285-AX Overview

Axiom AX DDR4 module 128 GB LRDIMM 288-pin 3200 MHz / PC4-25600 LRDIMM. Axiom’s DDR4 Modules use the latest evolutionary DRAM design, provides improved speed, power management and reliability. The release of DDR4 delivers an overall performance improvement of up to 30% for single DIMM configurations. DDR4 performance scales up to 65% faster in 3-DIMM per channel (3DPC) applications over DDR3. High bandwidth and faster data rates combined with lower voltage demands deliver the most compelling and significant DRAM computing update in the past decade.

$1,069

Buy Now
Availability: In Stock
SKU:AB445285-AX
Brand:

AB445285-AX Technical Specifications

Axiom AX DDR4 module 128 GB LRDIMM 288-pin 3200 MHz / PC4-25600 LRDIMM

Brand: Axiom
Product Line: Axiom
Model: AX
Manufacturer: Axiom
Memory
Chips Organization: 4096 x 4
Data Integrity Check: ECC
Memory Specification Compliance: PC4-25600
Memory Speed: 3200 megahertz
Memory Technology: DDR4 SDRAM
Memory Type: DRAM
Memory Voltage: 1.2 volt
Module Configuration: 16384 x 72
Registered or Buffered: Load-Reduced
Ram Capacity: 128 GB
Upgrade Type: System specific
Technical Information
CAS Latency: CL22
Form Factor (RAM): LRDIMM 288-pin
Product Information
Packaged Quantity: 1
Product Type: Memory module
Certifications & Listings
Compliant Standards: RoHS
