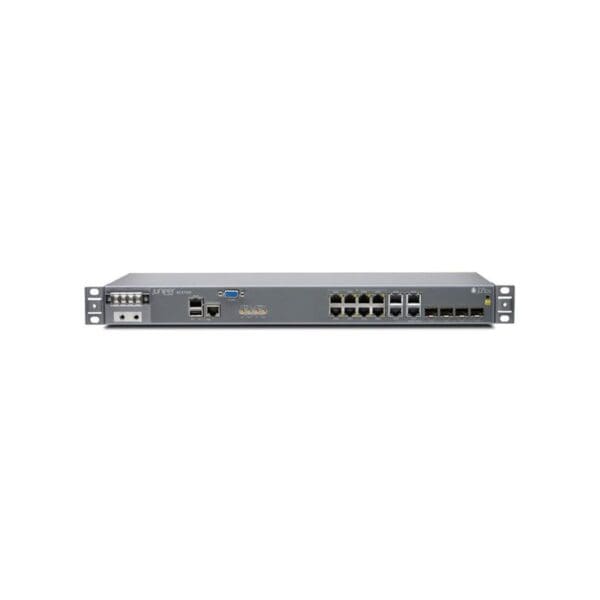

Refurbished ACX1100-AC Juniper Networks ACX Series 1100 router

Refurbished ACX1100-AC Technical Specifications

Juniper Networks ACX Series 1100 router rack mountable

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks ACX Series
Model :1100
Packaged Quantity :1
Modem
Type :None
Networking
Type :Router
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Ethernet, Fast Ethernet
Routing Protocol :MPLS
Remote Management Protocol :SNMP 1, CLI, SNMP 2, SNMP 3
Data Transfer Rate :60 GBps
Features :Fanless, Call Admission Control (CAC), Class of Service (CoS), Precision Time Protocol (PTP)
Compliant Standards :MEF 9, IEEE 1588-2008, MEF 14, MEF 21, G.703
Interface Provided
Interfaces :Management: 1 x, 4 x SFP (mini-GBIC), Serial: 1 x RS-232, Alarm: 4 x input, Alarm: 4 x output, 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Compliant Standards :EN 61000-3-2, ETSI, CISPR 22 Class A, CS-03, TBR12, VCCI Class B ITE, EN 61000-4-6, UL 60950-1, EN 61000-4-4, FCC Part 15 A, EN 61000-3-3, NEBS, EN 61000-4-3, EN55022 Class A, R&TTE, TBR13, EN 60950-1, FCC Part 68, JATE, CAN/CSA C22.2 No. 60950-1, EN 61000-4-2, IEC 60950-1, EN 60825-1, ETS 300 753, TBR21, EN 61000-4-11, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :9.4 inch
Height :1.7 inch
Weight :7.8 lbs
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :158 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
