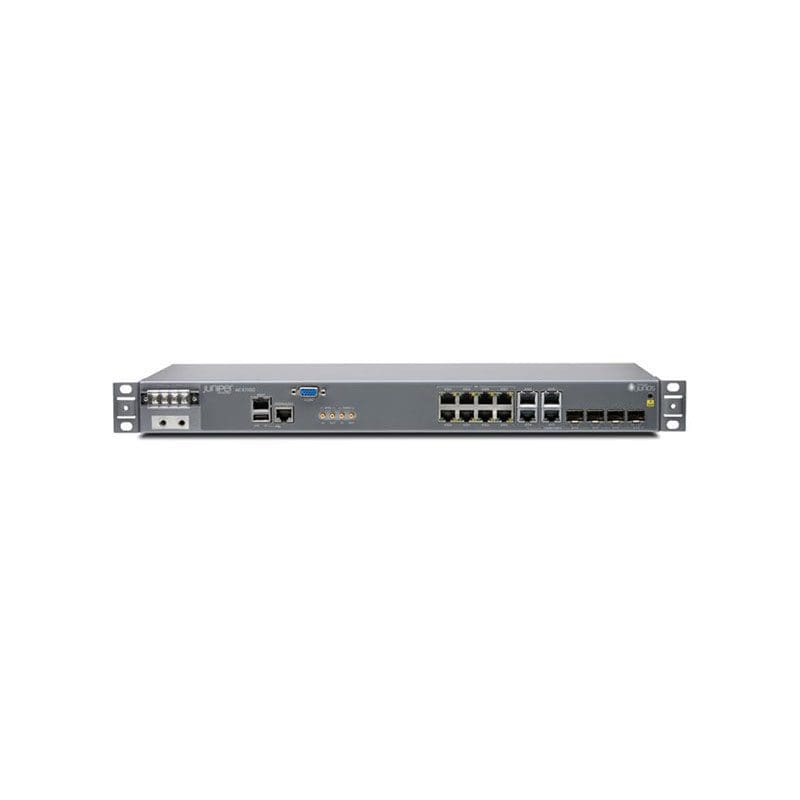

Refurbished ACX2200-DC Technical Specifications
Juniper Networks ACX Series 2200 router
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks ACX Series
Model :2200
Packaged Quantity :1
Modem
Type :None
Networking
Type :Router
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Routing Protocol :MPLS
Remote Management Protocol :SNMP 2, CLI, SNMP 3, SNMP 1
Key Features :VPN support
Features :Call Admission Control (CAC), Class of Service (CoS), Timing support, High Availability, VPN support
Compliant Standards :G.703
Interface Provided
Interfaces :6 x 1000Base-X – SFP (mini-GBIC), 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45, 2 x 10Gb Ethernet / 1Gb Ethernet – SFP+
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :DC 24/-48/-60 V
Power Consumption Operational :80 watt
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Compliant Standards :CS-03, EN 61000-4-11, EN55022 Class A, ETSI, VCCI Class B, CB, TBR21, TBR12, CAN/CSA C22.2 No. 60950-1, GR-1089-CORE, CISPR 22 Class A, TBR13, EN 61000-3-2, FCC Part 15 A, UL 60950-1, EN 61000-4-5, EN 61000-4-6, EN 61000-4-2, EN 60950-1, EN 61000-4-4, EN 61000-4-3, GR-63-CORE, EN 60825-1, R&TTE, NEBS level 3, IEC 60950-1, FCC Part 68, EN 61000-3-3, ETS 300 753, JATE, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :9.4 inch
Height :1.7 inch
Weight :8.31 lbs
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :149 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
