af5 Ubiquiti airFiber 5 GHz Full Duplex Point-to-Point Gigabit Backhaul
af5 Overview

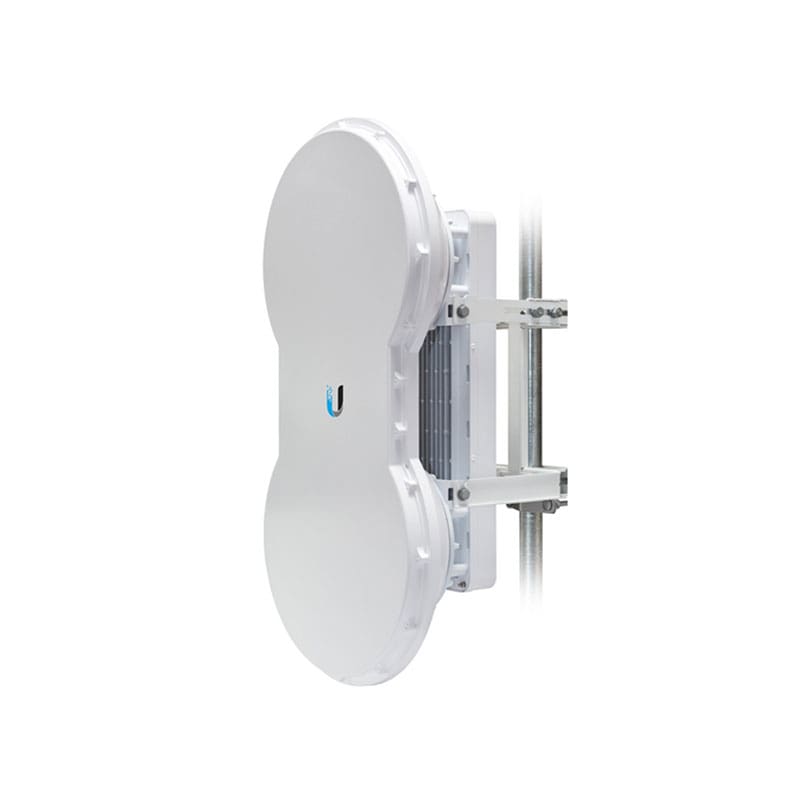

The Ubiquiti airFiber 5 GHz Full Duplex Point-to-Point Gigabit Backhaul is a high-performance wireless bridge designed for robust and reliable connectivity over long distances. It operates in the 5 GHz frequency band, offering full duplex communication and gigabit throughput suitable for demanding point-to-point applications. Ideal for network operators and ISPs, this airFiber provides low latency, high bandwidth, and secure transmission, making it perfect for establishing high-capacity links between buildings, towers, or remote locations with minimal interference.
af5 Technical Specifications
Ubiquiti airFiber 5 GHz Full Duplex Point-to-Point Gigabit Backhaul
Manufacture Part Number:
Manufacturer:
LAN speed: (1) 10/100/1000Mbps + (1) 10/100Mbps
Gigabit LAN: Yes
GPS modul: Yes
Other features: RJ-12 – Alignment Tone Port
Physical characteristics
Purpose: Outdoor
Buttons: Reset
Operating temperature [°C]: -40 up to 55
Weight [g]: 16000
Depth [mm]: 281
Width [mm]: 468
Height [mm]: 938
Power
Max. power consumption [W]: 40
Power over Ethernet: 42 .. 58V DC
PoE type: Input
Software
Operating mode: Bridge
IPv6 support: Transparent (bridge mode)
Default IP address: 192.168.1.20
Default login and password: ubnt / ubnt
Wireless features
Sensitivity [dBm]: -95
Frequency range [MHz]: 5470 – 5950
Cross-Pol Isolation [dB]: 28
Maximum modulation: 1024QAM
F/B ratio [dB]: 70
Wireless frequency: 5 GHz
