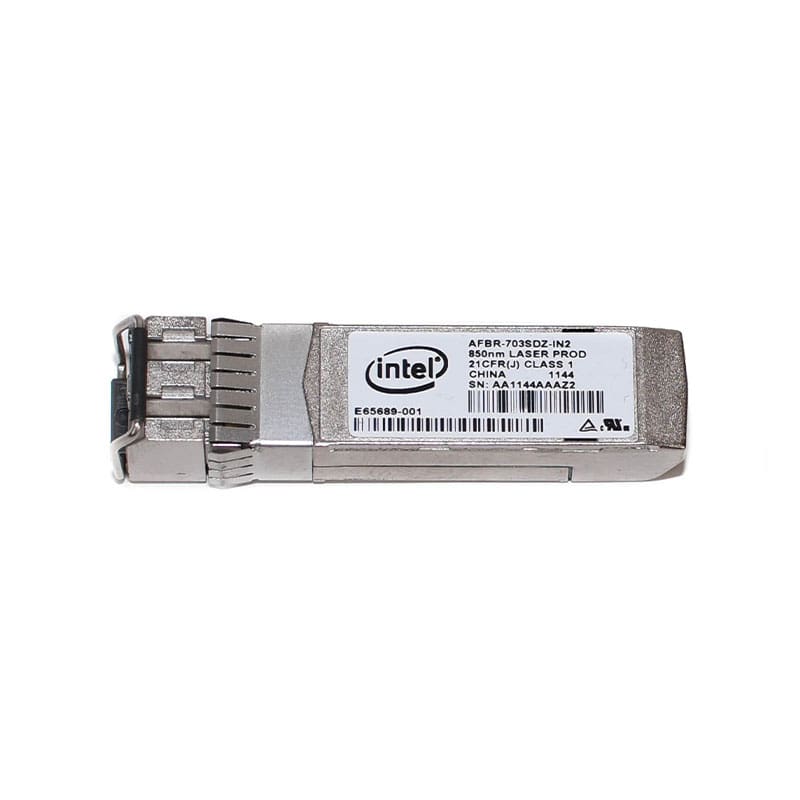

AFBR-703SDZ-IN2 Intel Duplex LC Connector SFP+ Transceiver Module

AFBR-703SDZ-IN2 Technical Specifications

Intel Duplex LC Connector SFP+ Transceiver Module

General Information
Brand Name: Intel
Product Type: SFP+
Technical Information
Data Networking: Optical Network
Interfaces/Ports
Interfaces/Ports Details: 1 x LC Duplex 10GBase-SR Network
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-SR
Physical Characteristics
Form Factor: Hot-pluggable
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Form Factor: SFP+
TX Wavelength: 850nm
Reach: 300m
Cable Type: MMF
Rate Category: 10GBase
Interface Type: SR
DDM: Yes
Connector Type: Dual-LC
Temperature: Commercial
Power Budget: 5.1dB
TX Power Min/Max: -6.00 t-1.00
RX Power Min/Max: -11.1 t-1.00
