AFBR-89CTDZ-FT1 Technical Specifications

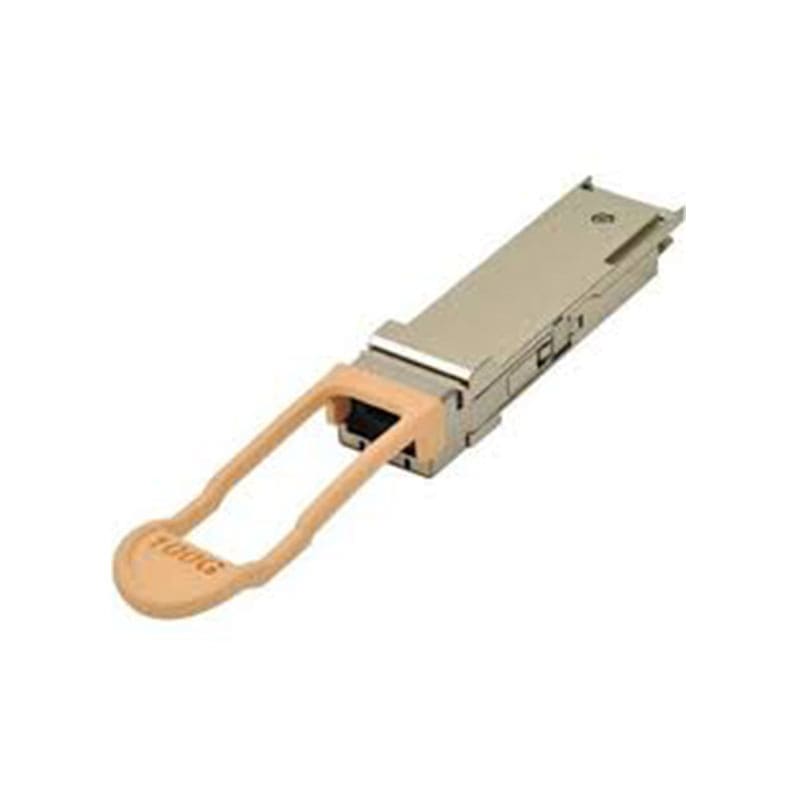

Dell 100Gbase-SR4 Qsfp28 Optical Transceiver
Manufacturer: Dell
Part Number: 014NV5
Model Number: Q28-100G-SR4-G2
Device Type: Plug-in module
Form Factor: QSFP28
Max Data Rate: 103.125Gbps (4x 25.78Gbps)
Wavelength: 850nm
Max Cable Distance: 70m@OM3/100m@OM4
Connector: MTP/MPO-12
Cable Type: MMF
Transmitter Type: VCSEL 850nm
Receiver Type: PIN
DDM/DOM: Supported
