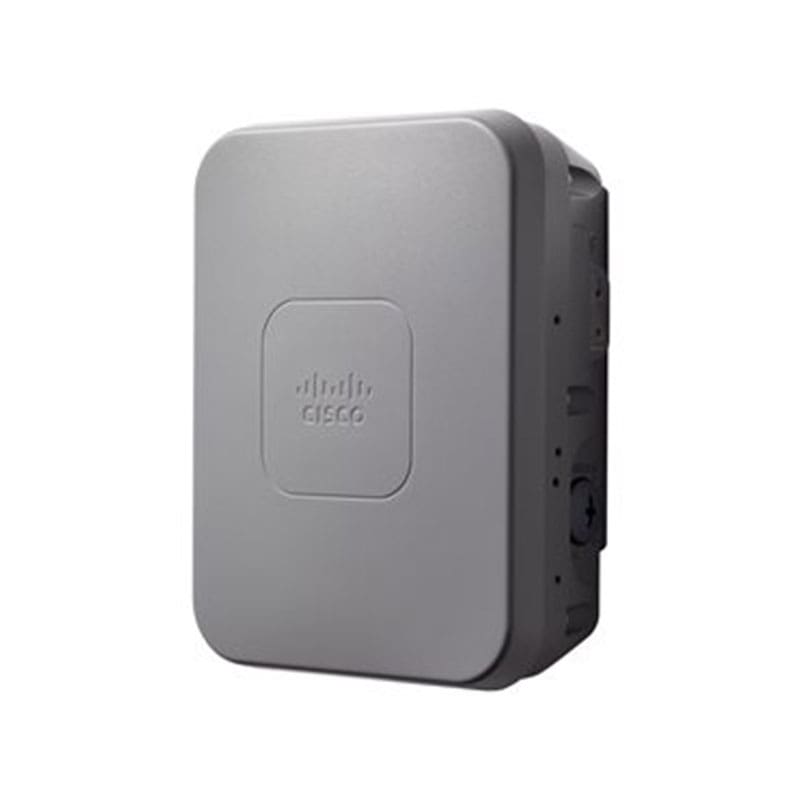

Refurbished AIR-AP1562I-E-K9 Technical Specification
Cisco Aironet wireless access point
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Aironet
Model :1562I
Packaged Quantity :1
Antenna
Antenna Form Factor :Internal
Directivity :Omni-directional
Chassis
Ruggedized Design :Outdoor
Capacity
Capacity :Spatial streams: 2
Networking
Type :Wireless access point
Form Factor :External
Connectivity Technology :Wireless
Data Link Protocol :IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless Protocol :802.11a/b/g/n/ac Wave 2
Network / Transport Protocol :IPSec, L2TP
Data Transfer Rate :1.3 GBps
Wi-Fi Bands :2.4 GHz, 5 GHz
Power Over Ethernet (PoE) :UPOE
Features :2T2R MIMO technology, 3T3R MIMO technology, Auto-sensing per device, Beamforming technology, ClientLink technology, Cyclic shift diversity (CSD), DFS support, Dynamic path selection (DPS), MAC address authentication, MAC address filtering, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Radio resource management (RRM), Reset button, VPN passthrough
Compliant Standards :IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
Interface Provided
Interfaces :1 x – SFP (mini-GBIC), 1 x 1000Base-T – RJ-45 (WAN), 1 x management – RJ-45
Miscellaneous
Encryption Algorithm :AES, LEAP, PEAP, TLS, TTLS, WPA, WPA2
Authentication Method :Extensible Authentication Protocol (EAP), X.509 certificates
Compliant Standards :ANSI / IEEE 587 C62.41, ARIB STD-T66, ARIB STD-T71, AS/NZS 4268.2003, EN 300 328, EN 301 489-1, EN 301 893, EN 60068-2-5, EN 60950, EN 60950 Second Edition, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, FCC OET Bulletin 65c, FCC Part 15.107, FCC Part 15.109, FCC Part 15.247, FCC Part 15.407, IEC 60529 IP67, IEC 60950 Second Edition, MIL-STD-810, NEMA 250-2008, NEMA Type 4X, RSS-102, RSS-210, UL 60950 Second Edition
Dimensions & Weight
Width :6.7 inch
Depth :3.9 inch
Height :9 inch
Weight :5.51 lbs
Service & Support
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
