AIR-AP1810W-Z-K9 Cisco Aironet 1810W Access Point

AIR-AP1810W-Z-K9 Technical Specifications

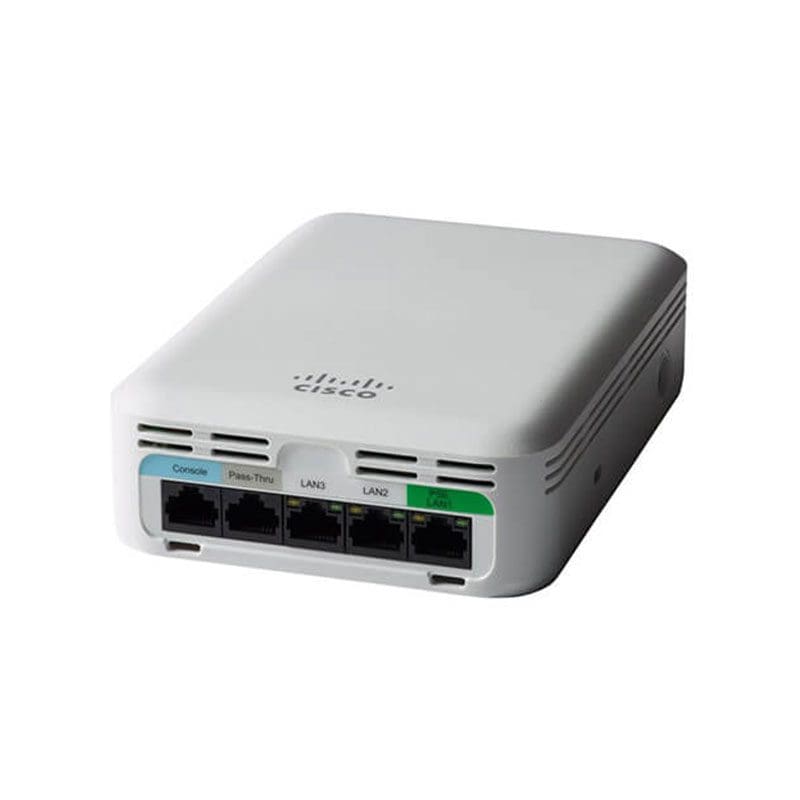

Cisco Aironet 1810W Access Point

Product Code
AIR-AP1810W-Z-K9
Interfaces
1 × 10/100/1000BASE-T PoE uplink port
1 × Management console port (RJ-45)
1 × passive pass-through port RJ-45 (back to bottom)
1 × DC power connector
Features
2×2 single-user/multiuser MIMO with two spatial streams
Maximal ratio combining (MRC)
20-, 40- and 80-MHz channels
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic shift diversity (CSD) support
Regulatory Domain
Z (Z regulatory domain):
2.412 to 2.462 GHz; 11 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
5.745 to 5.825 GHz; 5 channels
System
512 MB DRAM
256 MB flash
1.4 GHz system dual-core CPU
