AIR-AP1815W-A-K9C Technical Specifications

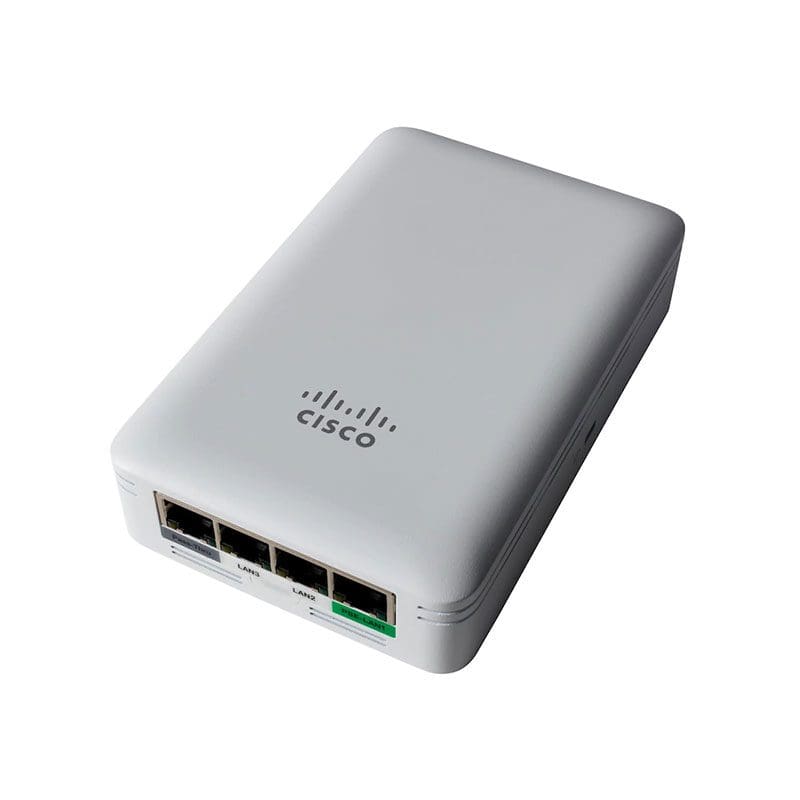

Cisco Aironet 1815W 802.11ac Wave 2 Access Point
Authentication and security
802.1X, RADIUS authentication, authorization and accounting (AAA)
802.11r
802.11i
Software
Cisco Mobility Express
Supported WLAN COntrollers
Cisco Mobility Express
802.11ac
2×2 single-user/multiuser MIMO with two spatial streams
Maximal ratio combining (MRC)
20-, 40-, and 80-MHz channels
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic shift diversity (CSD) support
Ethernet ports
Authentication with 802.1X or MAC filtered
Dynamic VLAN or per port
Bluetooth (future Availability)
Integrated Bluetooth 4.1 (including BLE) radio
Maximum transmit power: 4 dBm
Antenna gain: 2 dBi
System
1 GB DRAM
256 MB flash
710 MHz quad-core
Powering options
802.3af/at Ethernet switch
Power draw
8.5W (maximum, without PoE out)
