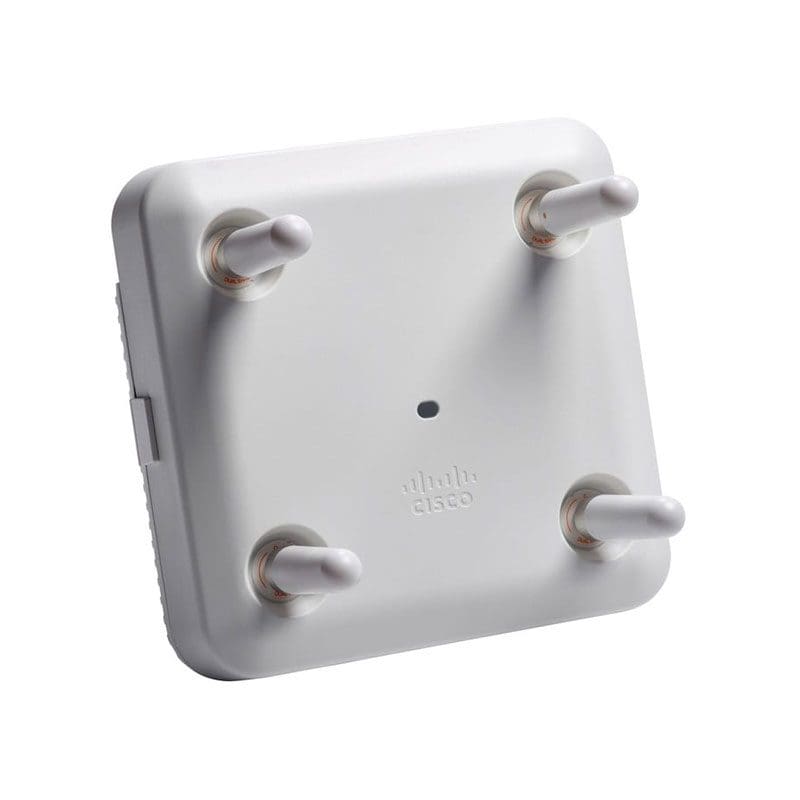

AIR-AP2802E-C-K9 Cisco Aironet 2802E Access Point

AIR-AP2802E-C-K9 Technical Specifications

Cisco Aironet 2802E Access Point

Product Code
AIR-AP2802E-C-K9
Frequency band and 20-MHz operating channels
C (C regulatory domain):, – 2.412 to 2.472 GHz; 13 channels, – 5.745 to 5.825 GHz; 5 channels
Antenna
External Antenna
Features
– 4×4 MU-MIMO with three spatial streams
– MRC
– 802.11ac Beamforming
– 20-, 40-, 80, 160-MHz channels
– PHY data rates up to 5.2 Gbps
– Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
– 802.11 DFS
– CSD support
Interfaces
– 2 x 100/1000BASE-T autosensing (RJ-45)
– Management console port (RJ-45)
– USB 2.0 (enabled via future software)
System memory
– 1024 MB DRAM
– 256 MB flash
Dimensions (W x L x H)
8.66 x 8.77 x 2.50 in.
Net Weight
4.6 lb (2.09 kg)
