AIR-AP3802I-H-K9C Technical Specifications

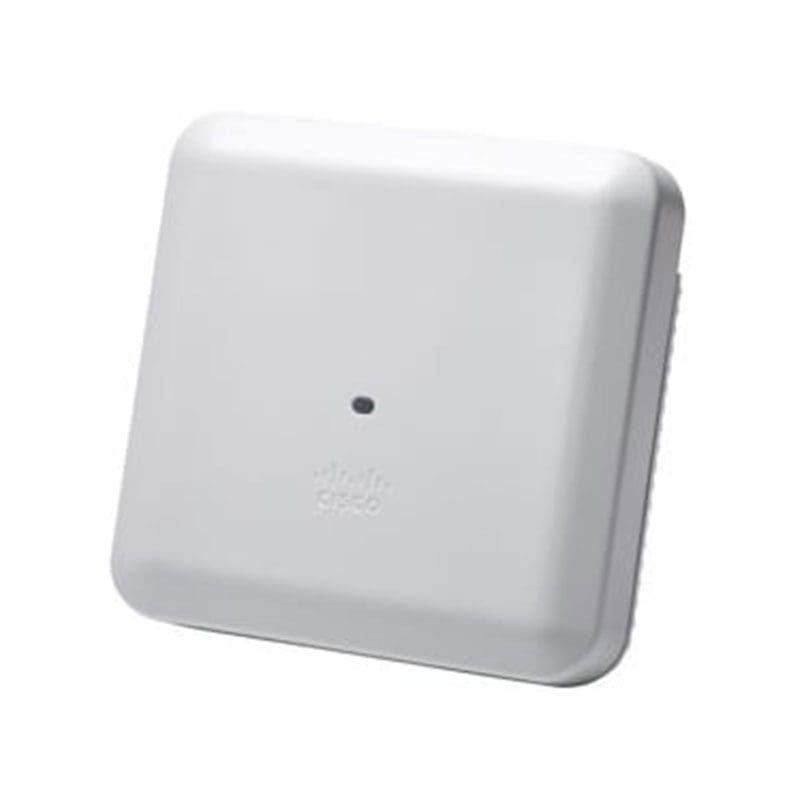

Cisco Aironet 3802i Access Point
Product Code
AIR-AP3802I-H-K9C
Antennas
Internal Antennas
Description
Dual-band, controller-based 802.11a/g/n/ac, configurable
Interfaces
2 Ethernet ports
100/1000/2500/5000 Multigigabit Ethernet (RJ-45)
CAT 5e cabling
Higher-quality 10GBASE-T (CAT 6/6a) cabling
100/1000BASE-T autosensing (RJ-45 – AUX port)
Management console port (RJ-45)
Features
4×4 MU-MIMO with three spatial streams
MRC
802.11ac beamforming
20-, 40-, 80, 160-MHz channels
PHY data rates up to 5.2 Gbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
Regulatory Domain
H (H regulatory domain):
2.412 to 2.472 GHz; 13 channels
5.150 to 5.320 GHz; 8 channels
5.745 to 5.825 GHz; 5 channels
System
1024 MB DRAM
256 MB flash
