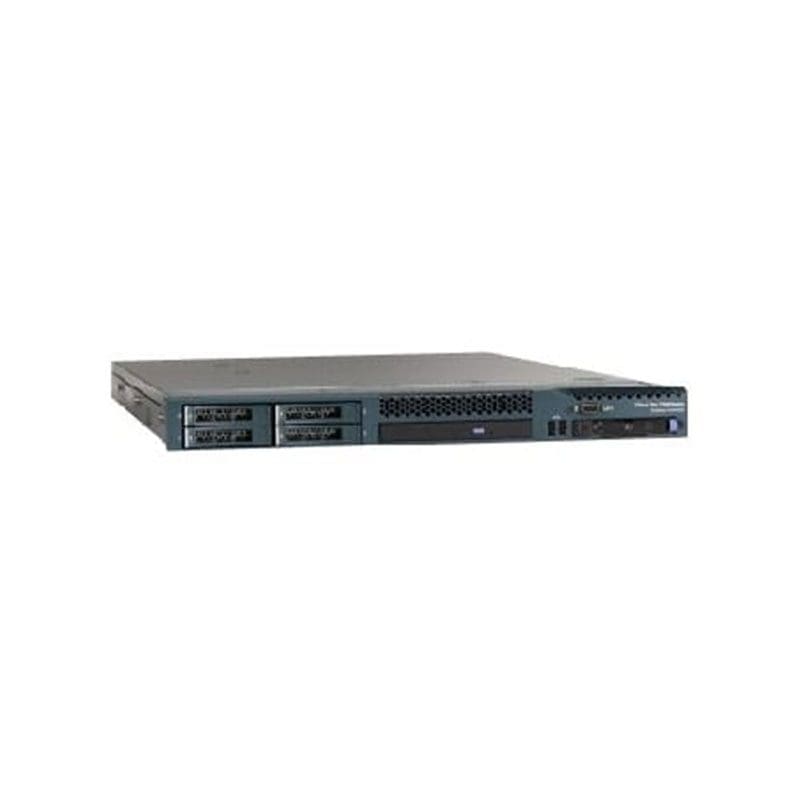

Refurbished AIR-CT8510-1K-K9 Cisco 8500 Series Wireless Controller

Refurbished AIR-CT8510-1K-K9 Technical Specification

Cisco 8500 Series Wireless Controller

Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Capacity Manageable access points: 1000 ¦ Virtual interfaces (VLANs): 4096
Status Indicators Power, system, HDD activity, link/activity
Features VLAN support, Syslog support, IPv6 support, SNTP support, Wi-Fi Multimedia (WMM) support, RADIUS support, CleanAir technology, CAPWAP support
Encryption Algorithm Triple DES, RC4, MD5, AES, IKE, SSL, TLS 1.0, TKIP, WPA, WPA2, PKI, AES-CCMP, AES-CCM, AES-CBC, DTLS, TLS 1.1
Authentication Method RADIUS, Extensible Authentication Protocol (EAP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 – 80%
General
Device Type Network management device
Height (Rack Units) 1U
Width 17.3 in
Depth 30.4 in
Height 1.7 in
Weight 35.05 lbs
Expansion / Connectivity
Expansion Bays 2 (total) / 2 (free) x hot-swap – 2.5″
Interfaces 1 x serial – DB-9 ¦ 2 x 10Gb Ethernet ¦ 1 x 1000Base-T (management) – RJ-45 ¦ 4 x USB – Type A ¦ 1 x 100Base-TX (management) ¦ 2 x video
Power
Power Device Internal power supply – hot-plug
Installed Qty 2
Max Supported Qty 2
Power Redundancy Yes
Voltage Required AC 120/230 V (50/60 Hz)
