AL624 Technical Specifications

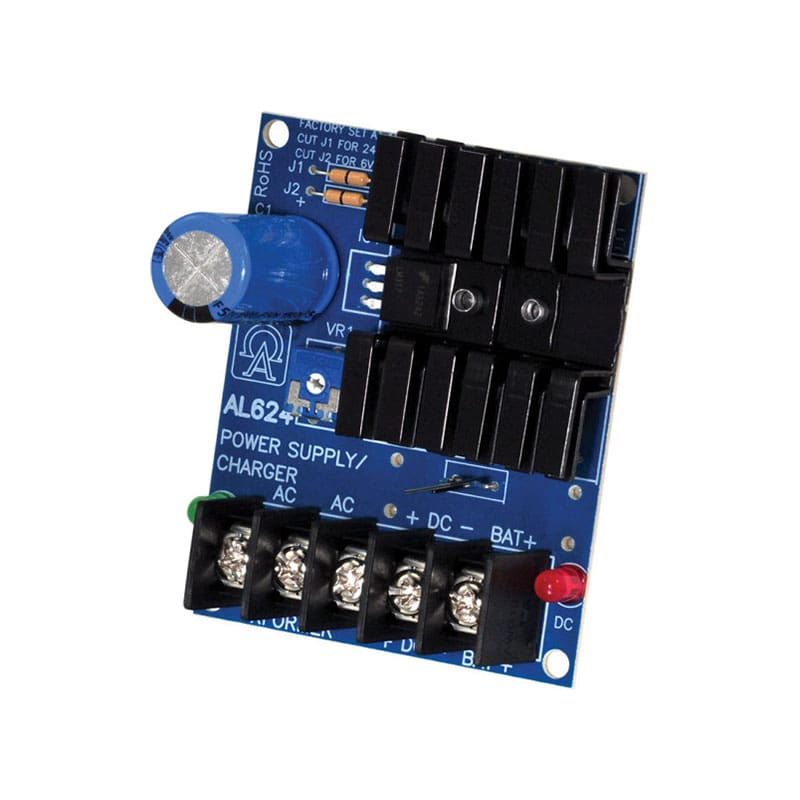

Altronix Linear Power Supply Charger, Single Class 2 Output, 6/12/24VDC @ 1.2A, 16 to 24VAC, Board
Manufacturer: Altronix
Manufacture Part #: AL624
Brand Name: Altronix
Version: Board
Length: 3.00 in
Width: 2.50 in
Height: 1.50 in
Weight: 0.1 lbs
Current (A): 1.2 / 0.75
Operating Voltage: 16 – 24 VDC
Output Voltage: 6 / 12 / 24 VDC
Outputs: 1
Output Type: DC
