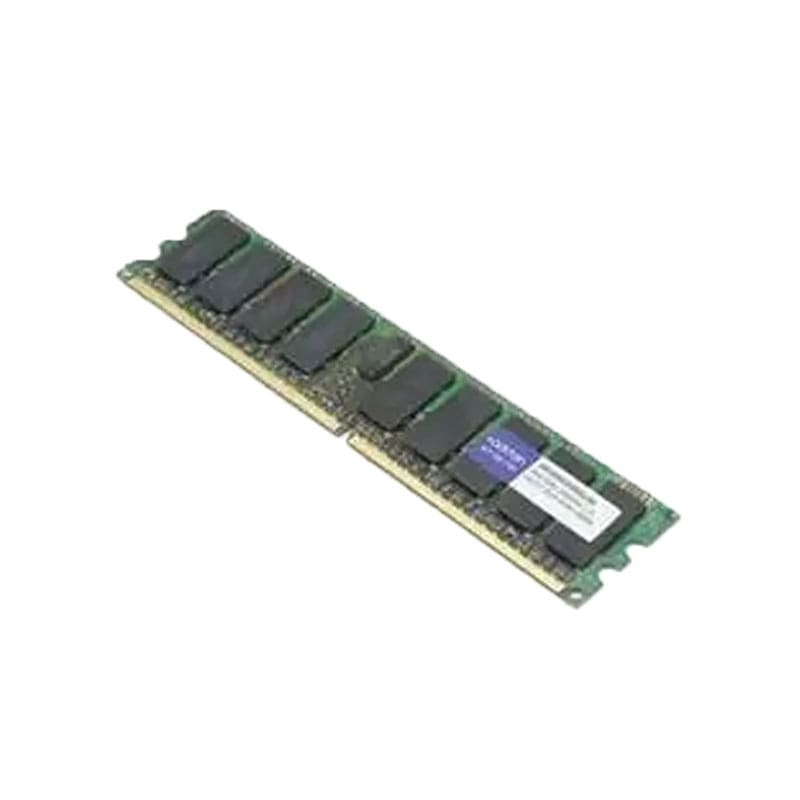

AM1600D3DR8ES/8G Technical Specifications
AddOn 8GB DDR3 SDRAM Memory Module
Manufacturer: AddOn
Brand Name: AddOn
Product Name: 8GB DDR3 SDRAM Memory Module
Packaged Quantity: 1
Product Type: RAM Module
RAM / Data Integrity Check: ECC
RAM / Memory Specification Compliance: PC3-12800
RAM / Memory Speed: 1600 MHz
RAM / Registered or Buffered: Unbuffered
RAM / Technology: DDR3 SDRAM
RAM / Type: DRAM
RAM / Upgrade Type: Generic
Capacity: 8 GB
Chips Organization: X8
Features: Dual rank, unbuffered
Latency Timings: CL11
Voltage: 1.5 V
Number of Pins: 204-pin
Form Factor: SoDIMM
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
TAA Compliant: No
