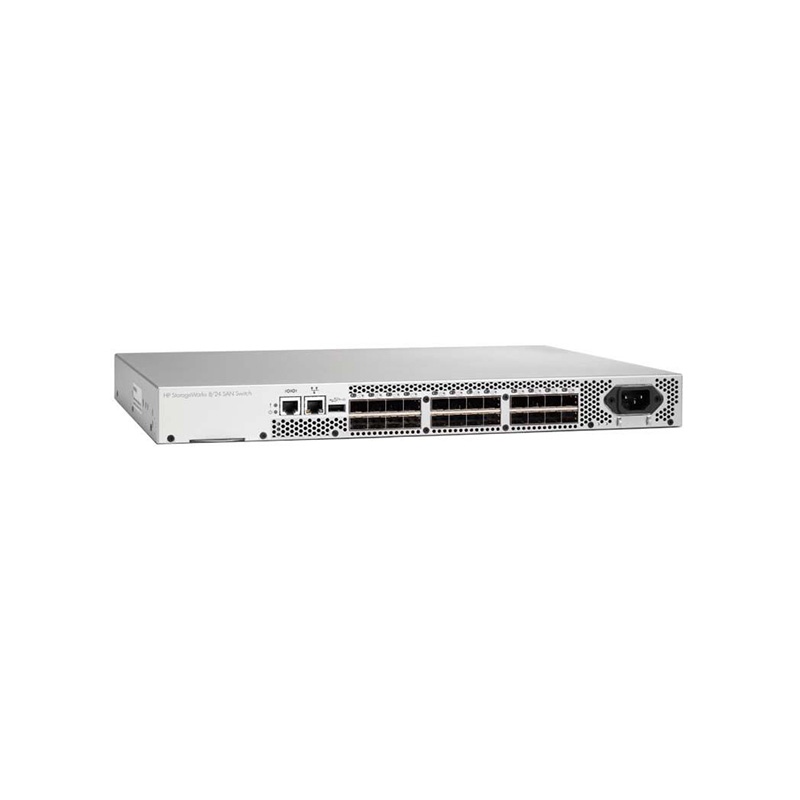

AM868B HP 8/24 Base Full Fabric 16-Ports SFP+ EnabLED San Switch
AM868B Overview
The HP AM868B 8/24 Base SAN Switch is a compact, high-performance Fibre Channel switch designed for enterprise-class storage networking. It features 24 SFP+ Fibre Channel ports, with 16 active out of the box and the option to scale up to 24 through license activation. Supporting 8Gbps speeds, the switch provides reliable, low-latency connectivity across storage area networks. With full fabric functionality enabled, it is well-suited for integrating into complex SAN environments, offering secure zoning, NPIV support, and strong management capabilities.
AM868B Technical Specifications
HP 8/24 Base Full Fabric 16-Ports SFP+ EnabLED San Switch Rack-mountable 1U
Manufacturer: HP
Manufacture Part Number: AM868B
Type: Fibre Channel SAN Switch
Total Ports: 24 x SFP+ Fibre Channel ports
Active Ports: 16 ports enabled
Port Speed: 8Gbps Fibre Channel
Switching Architecture: Full Fabric enabled, high-bandwidth, low latency
Expansion: Additional ports can be activated with licenses
Management: CLI, Web Tools, SNMP, Fabric Manager
Form Factor: 1U rack-mountable
Power: Redundant, hot-swappable power supply support
Cooling: Hot-swappable fans, optimized airflow
