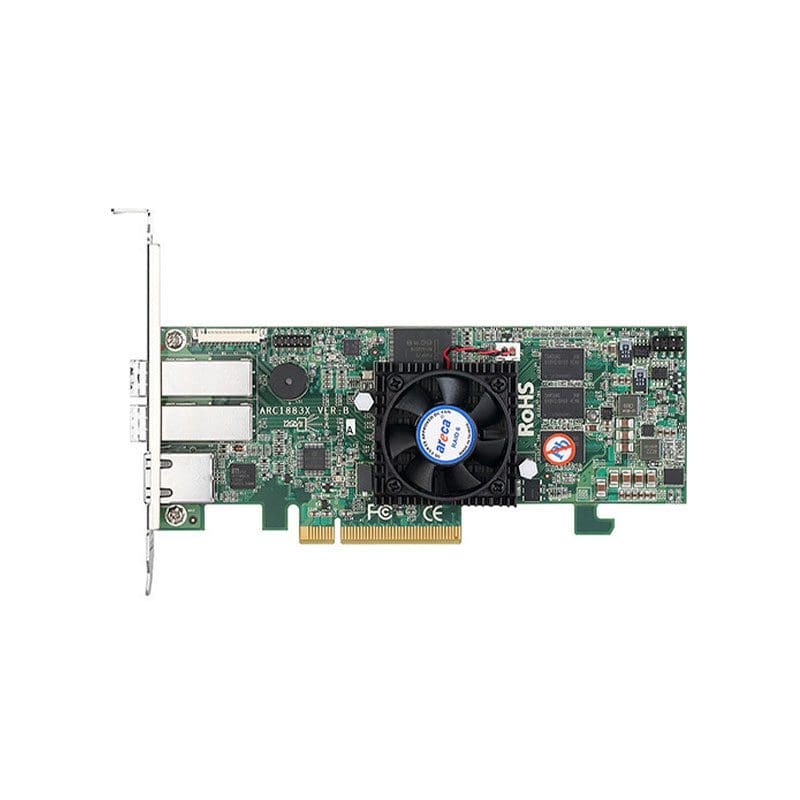

ARC-1883X Technical Specifications
Areca SAS Controller 12Gb/s SAS, Serial ATA/600 PCI Express 3.0 x8 Plug-in Card RAID Supported 0, 1, 10, 3, 5, 6, 30, 50, 60, JBOD RAID Level Linux, Mac, PC 2GB NV Cache
Manufacturer Part Number ARC-1883X
Brand Name Areca
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
10
3
5
6
30
50
60
JBOD
Data Backup Type NV Cache
Memory
Cache Memory 2 GB
Interfaces/Ports
SAS Connector Details 2 SFF-8644
Physical Characteristics
Height 2.5″
Depth 6.7″
Form Factor Plug-in Card
Miscellaneous
Platform Supported Linux
Mac
PC
Environmentally Friendly Yes
Environmental Certification RoHS
