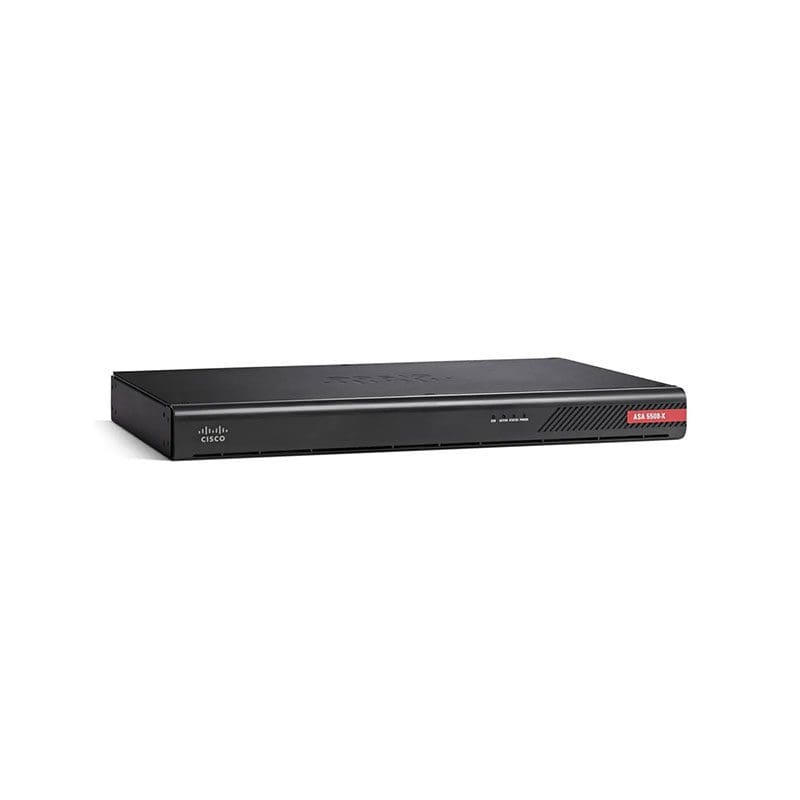

ASA5508-K9 Technical Specification
Cisco ASA 5508-X with Fire Power
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco ASA
Model :5508-X with FirePOWER Services
Packaged Quantity :1
RAM
Installed Size :8 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Form Factor :mSATA
Installed Qty :1
Capacity :80 GB
Performance
Performance :Application control (AVC) and NGIPS throughput: 250 Mbps, Application control (AVC) or IPS sizing throughput: 180 Mbps, Application control (AVC) throughput: 450 Mbps, Multiprotocol firewall throughput: 500 Mbps, Stateful throughput: 1 Gbps, VPN throughput (3DES/AES): 175 Mbps
Capacity
Capacity :Concurrent sessions: 100000, IPSec VPN peers: 100, New connections per second: 10000, Virtual interfaces (VLANs): 50
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Features :Firewall protection, VLAN support, VPN support
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x console – RJ-45, 1 x mini-USB, 1 x USB 2.0 – Type A, 8 x 1000Base-T – RJ-45
Power Device
Type :External power adapter
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Refurbished :Refurbished
Height (Rack Units) :1
Encryption Algorithm :AES, Triple DES
Compliant Standards :CISPR 22, CISPR 24, CNS 13438, EN 300 386 V1.6.1, EN 300.489.1, EN 61000-3-2, EN 61000-3-3, EN55022, EN55024, FCC CFR47 Part 15, ICES-003, VCCI V-3
Dimensions & Weight
Width :17.2 inch
Depth :11.3 inch
Height :1.7 inch
Weight :6.61 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
