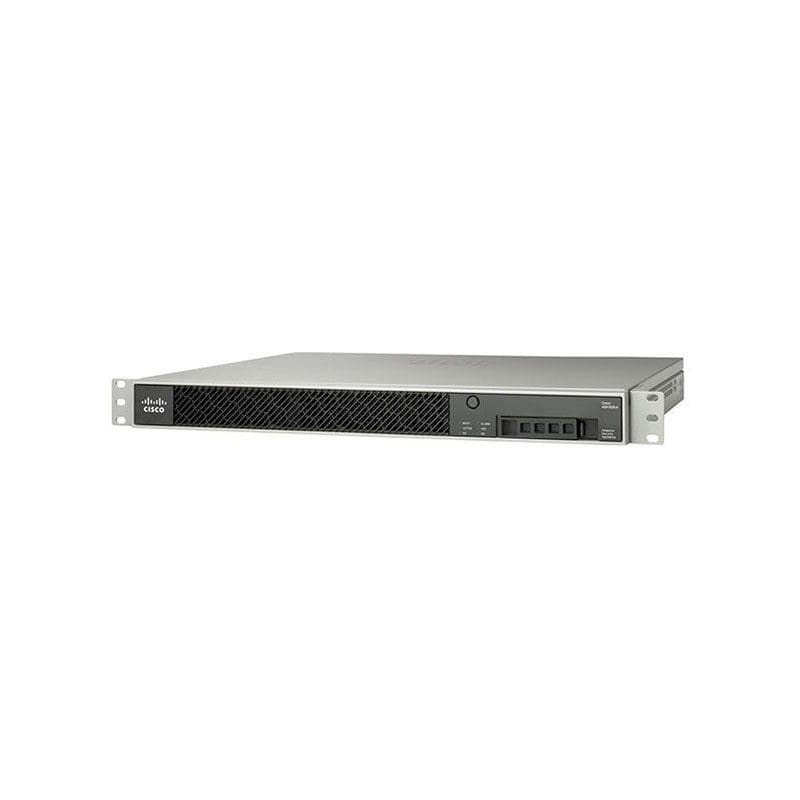

Refurbished ASA5525-K9 Technical Specifications
Cisco ASA 5525-X Firewall Edition security appliance
Brand :Cisco
Product Line :Cisco ASA
Model :5525-X Firewall Edition
Packaged Quantity :1
RAM
Installed Size :12 GB
Optical Storage
Type :None
Performance
Performance :Connection rate: 20000 connections per second, Firewall + intrusion prevention throughput: 600 Mbps, Firewall throughput: 2 Gbps, VPN throughput (3DES/AES): 300 Mbps
Capacity
Capacity :Concurrent sessions: 500000, IPSec VPN peers: 750, Security contexts: 2, SSL VPN peers: 2, Virtual interfaces (VLANs): 200
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet
Network / Transport Protocol :IPSec
Status Indicators :Active, Alarm, Boot state, HDD activity, Power, VPN
Features :Firewall protection, High Availability, VLAN support, VPN support
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x management – RJ-45, 2 x USB 2.0 – Type A, 8 x 1000Base-T – RJ-45
Software
Type :Cisco VPN Client
Power Device
Type :Internal power supply
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Refurbished :Refurbished
Height (Rack Units) :1
Encryption Algorithm :DES, Triple DES
Compliant Standards :CISPR 22, CSA C22.2 No. 60950-1-07 Second Edition, C-Tick, EMC, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 B Class A, ICES-003, IEC 60950-1 Second Edition, KC, UL 60950-1 Second Edition, VCCI V-3
Dimensions & Weight
Width :16.9 inch
Depth :15.6 inch
Height :1.7 inch
Weight :14.93 lbs
