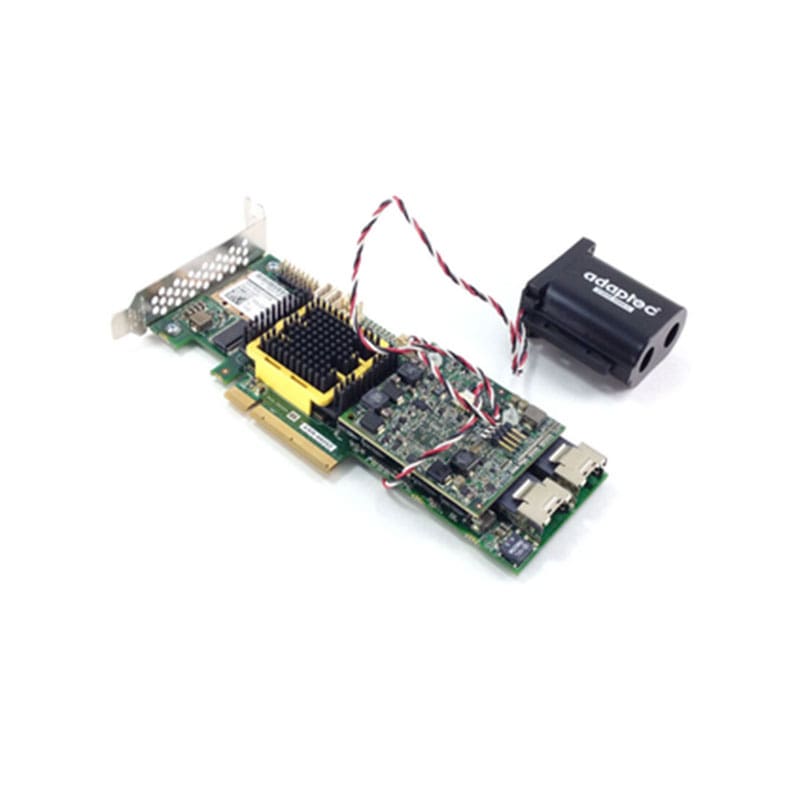

ASR-5805ZQ Adaptec 8-Port PCI-E X8 SAS-SATA RAID Controller
ASR-5805ZQ Overview
The Adaptec ASR-5805ZQ is a PCI-Express x8 SAS-SATA RAID controller that provides high-performance storage solutions for servers and workstations. It supports up to 8 SAS or SATA drives, and comes equipped with 512MB of onboard cache to enhance the speed and reliability of the storage system.
The Adaptec connects to a server or workstation via a PCI-Express x8 interface. This provides high-bandwidth connectivity between the RAID controller and the host system, allowing for fast data transfer rates and efficient use of system resources.
$45
ASR-5805ZQ Technical Specifications
Adaptec ASR-5805ZQ 8-Port Unified Serial SAS-SATA PCI-E Storage Controller with 512MB Cache
Manufacturer: Adaptec
Part Number or SKU# ASR-5805ZQ
Product Type: Controller
Product Name: SAS-SATA
Technical Information
Interface: PCI Express x8
RAID Levels: 0, 1, 1E, 5, 5EE, 6, 10, 50, and 60
Data Transfer Rate: 6 Gbps
Number of Ports: 8 internal SAS/SATA ports
Cache Memory: 512MB DDR2 cache memory
Dimensions: 6.6 x 2.7 inches
OS Support: Windows, Linux, Solaris, VMware, FreeBSD
Processor: Adaptec RAID 6 ASIC
Bus System Interface Type: x8 PCI Express
Compatibility: SATA-600 / SAS 2.0
RAID-on-Chip (ROC): 800 MHz PowerPC
Power Consumption: 12 watts
RAID Levels Supported: 0, 1, 1E, 5, 5EE, 6, 10, 50, 60
Host Bus Type: x8 lane PCI Express
Data Transfer Rate: 6 Gbps
