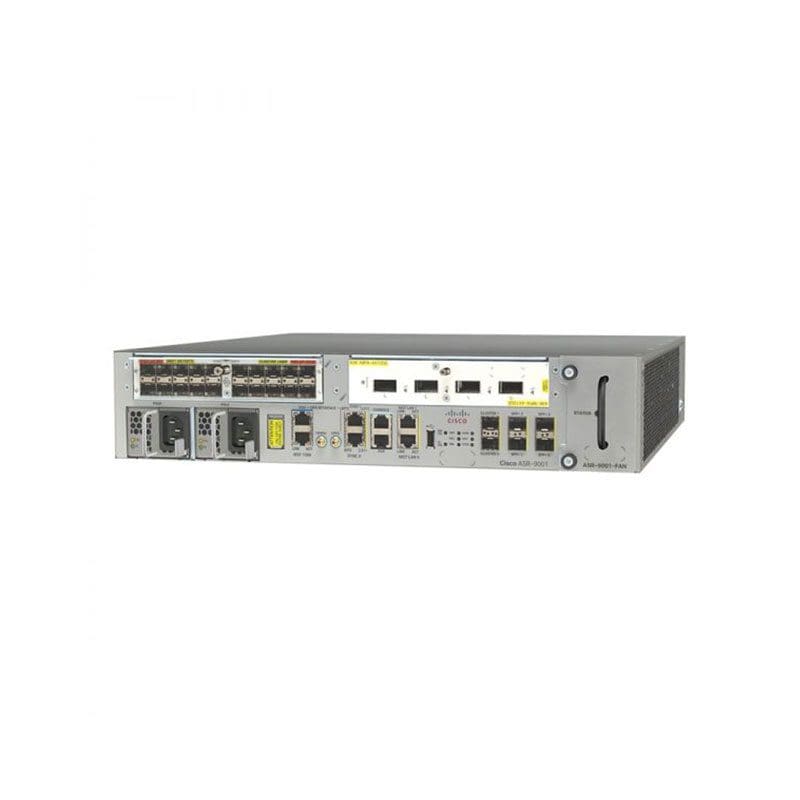

ASR-9001 Cisco ASR 9001 Chassis
ASR-9001 Overview
The Cisco ASR 9001 is a compact, high-capacity, provider-edge router that delivers 120 Gbps of nonblocking, full-duplex fabric capacity in a 2-rack-unit (2RU) form factor. Cisco ASR 9001 has an integrated route switch processor (RSP) and two modular bays, which support 1 Gigabit Ethernet, 10 Gigabit Ethernet, and 40 Gigabit Ethernet modular port adapters. The base chassis, ASR-9001 has four integrated 10 Gigabit Ethernet enhanced Small Form-Factor Pluggable (SFP+) ports, a GPS input for Stratum 1 clocking, BITS ports, and management ports.
$53,999
ASR-9001 Technical Specifications
Cisco ASR 9001 Chassis
Cisco: ASR
Cisco ASR: 9000
Router Chassis
Integrated interfaces
Type SFP+
4 x 10 GE SFP+
Modular port adapters
20 x 1 GE, 2 x 10 GE, 4 x 10 GE, 1 x 40 GE
Redundancy
Power supply redundancy
Power supply part number
A9K-750W-AC
A9K-750W-DC
Physical specifications
Height: 3.472 inches (88.2 mm)
Width: 17.42 inches (442 mm)
Depth: 18.5 inches (470 mm)
Weight of chassis: 30.2032 lbs (13.7 kg)
Weight of chassis with two MPAs: 36.37623 lbs (16.5 kg)
Power inputs
Worldwide ranging AC (90-265V; 50-60 Hz)
Worldwide ranging DC (-40V to -72V)
Power consumption
425 watts typical, 525 watts maximum
Environmental conditions
Operating temperature: 32 to 104°F (0 to 40°C)
Storage temperature: -40 to 167°F (-40 to 75°C)
