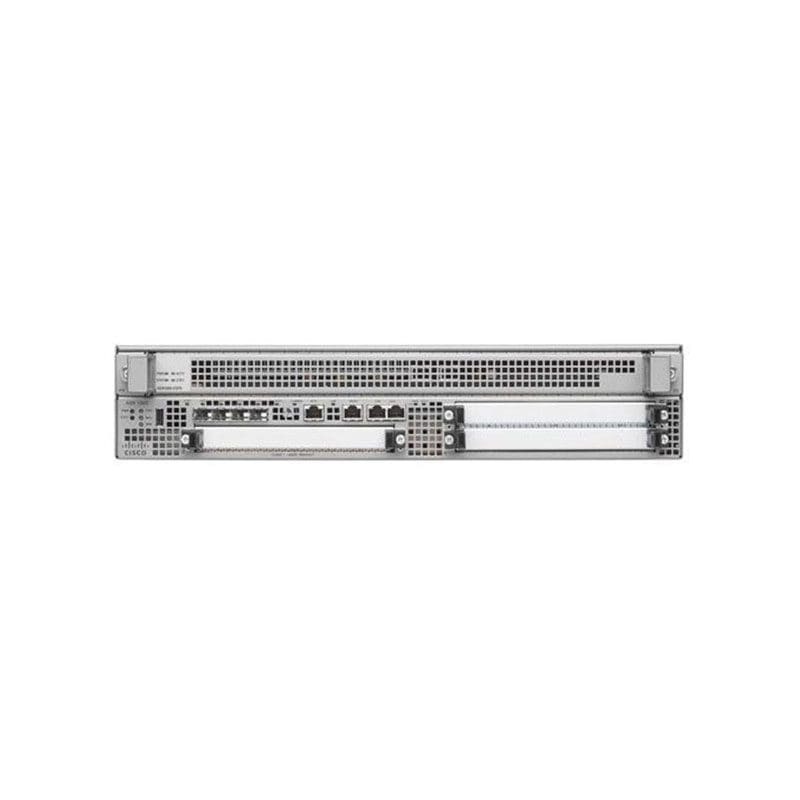

ASR1002X-36G-K9, Cisco ASR 1002-X Base Bundle Router

ASR1002X-36G-K9 Overview

Cisco ASR1002X-36G-K9 router is delivered into 2 rack unit chassis, the route processor for control plane embedded the services processor for data plane traffic as well as the carrier card which is designed to house I/O modules, share port adopters all integrated in the chassis. ASR 1002-X router comes with 6 build-in SFP ports and 3 box slots for I/O connectivity. The integrated embedded service processors offer 4 levels of system performance: 5Gbps which is default, 10, 20, 36Gbps all through software license upgrade without need for any additional hardware. The integrated the route processor comes by default with 4Gb DRAM, upgradeable to 8, 16Gb

$67,399

Buy Now
Availability: In Stock
SKU:ASR1002X-36G-K9
Brand:

ASR1002X-36G-K9 Technical Specifications

Cisco ASR 1002-X Base Bundle Router Rack Mountable

General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number ASR1002X-36G-K9
Brand Name Cisco
Product Line Cisco ASR
Product Series ASR 1000
Product Model ASR1002X
Interfaces/Ports:
USB Yes
Powerline No
Token Ring Port No
Serial V.35 Interface No
I/O Expansions:
Number of Total Expansion Slots 9
Expansion Slot Type-
SFP (mini-GBIC)
Shared Port Adapter
Network & Communication:
Network Technology 1000Base-X
Ethernet Technology Gigabit Ethernet
Memory:
Standard Memory 4 GB
Memory Technology DRAM
Flash Memory 16 GB
Power Description:
