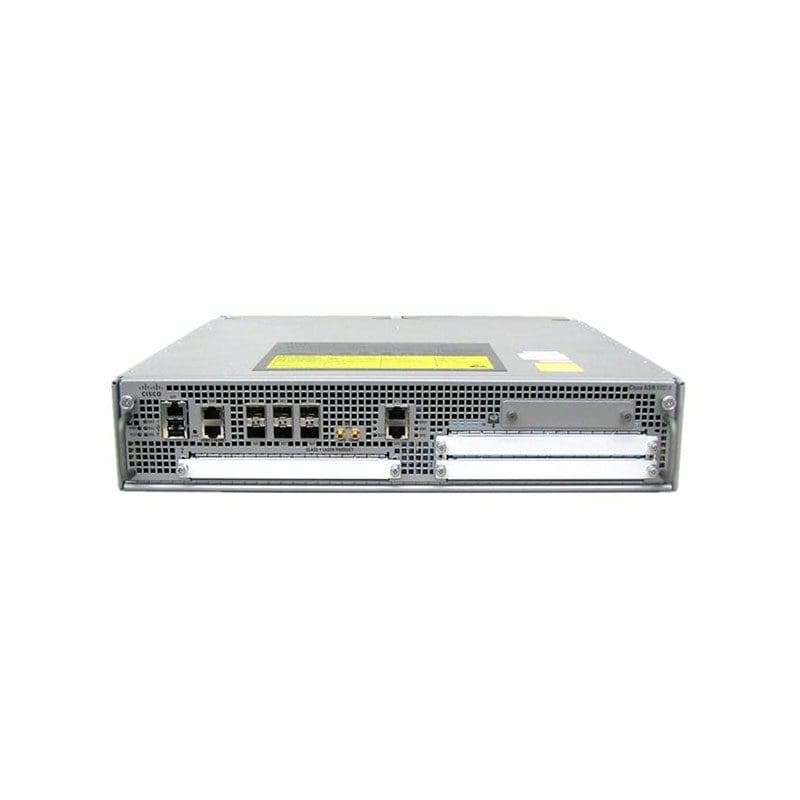

Refurbished ASR1002X-AIS-AX Technical Specifications
Cisco ASR 1002-X AX, AVC, AIS, vWAAS Bundle route
Brand :Cisco
Product Line :Cisco ASR
Model :1002-X
Kit :AX, AVC, AIS, vWAAS Bundle
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :3
RAM
Installed Size :4 GB
Max Supported Size :16 GB
Modem
Type :None
Performance
Performance :Bandwidth: 5 Gbps, Encryption throughput: 4 Gbps
Networking
Type :Router
Form Factor :Desktop, Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet
Status Indicators :Active, Power, Standby, Status
Key Features :USB port, VPN support
Features :Front to back airflow, Hardware encryption, VPN support
Expansion Slots
Expansion Slots :3 (total) / 3 (free) x expansion slot
Interface Provided
Interfaces :6 x Ethernet 1000 – SFP (mini-GBIC), Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Management: 1 x auxiliary – RJ-45, Management: 1 x console – RJ-45, USB: 2 x 4 pin USB Type A
OS Provided
Type :Cisco IOS XE Universal
Software
Type :Cisco Application Visibility and Control, Cisco IOS Advanced IP Services
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Miscellaneous
Color Category :Gray
Height (Rack Units) :2
Compliant Standards :AS/NZS 60950-1, CISPR 22, CISPR 24, CSA C22.2 No. 60950-1-03, EN 300 386, EN 60950-1, EN 61000-6-1, EN300-386, EN50082-1, EN55022, EN55024, GR-1089-CORE, GR-63-CORE, ICES-003 Class A, IEC 60950-1, KN22 Class A, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :17.2 inch
Depth :18.1 inch
Height :3.5 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 85%
