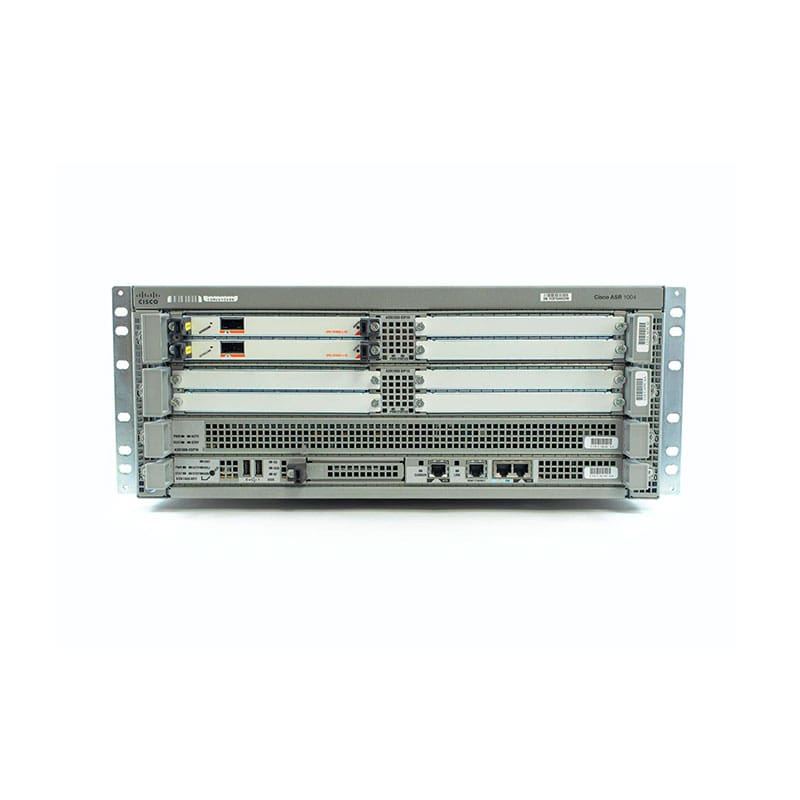

ASR100420GVPNK9 Cisco ASR 1004 VPN Bundle Router Desktop

ASR100420GVPNK9 Technical Specifications

Cisco ASR 1004 VPN Bundle Router Desktop

Device Type
Router
Enclosure Type
Desktop, rack-mountable – modular – 4U
Connectivity Technology
Wired
Performance
Forwarding performance: 23 Mbps ¦ Bandwidth: 20 Gbps
Capacity
Access control entries: 100000 ¦ QoS hardware queues: 128000 ¦ Concurrent IPSec VPN tunnels: 10000 ¦ NAT/ firewall sessions: 2000000 ¦ GRE tunnels: 4000 ¦ Maximum number of instances: 4000 ¦ Concurrent RTP sessions: 4000 ¦ Concurrent L2TP VPN tunnels: 16000 ¦ Concurrent sessions: 32000
Network / Transport Protocol
IPSec
Remote Management Protocol
SNMP, Telnet, SSH, CLI
Features
NAT support, VPN support, load balancing, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Quality of Service (QoS), IPv4 support, NetFlow
Compliant Standards
CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, EN 300 386
Hard Drive
40 GB
Expansion / Connectivity
Interfaces
Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x auxiliary – RJ-45 ¦ Management: 1 x USB – 4 pin USB Type A
Expansion Slots
1 (total) / 0 (free) x processor board ¦ 11 (total) / 9 (free) x expansion slot
Installed Modules Qty (Max)
3 (installed) / 12 (max)
