ASR1006-20G-SEC/K9 Technical Specifications

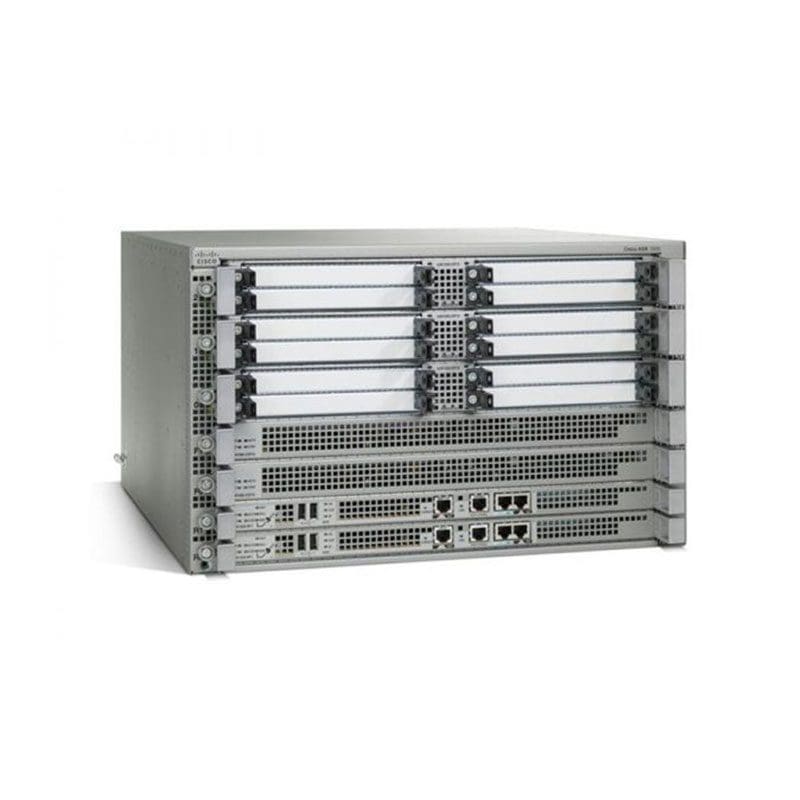

Cisco ASR 1006 Multi Service Router Ports 7 Slots Rack mountable
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: ASR1006-20G-SEC/K9
Brand Name: Cisco
Product Line: Cisco ASR
Product Series: ASR 1000
Product Model: ASR1006
Multi Service: Router
Form Factor: External, modular, 6U
Product Description: Cisco ASR 1006 VPN+FW Bundle
Device Type: Router
Power AC: 120/230 V ( 50/60 Hz )
Expansion / Connectivity
Interfaces 1 x management, Ethernet 10Base-T/100Base-TX, RJ-45 , 1 x management, console, RJ-45 , 1 x management, auxiliary, RJ-45
Expansion Slots Total: (Free) 2 ( 1 ) x processor board , 17 ( 15 ) x expansion slot
Installed Modules Qty: (Max) 3 (installed) / 19 (max)
Environmental Parameters
Min Operating Temperature: 41 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5, 90%
