BE6M-M5-K9 Technical Specifications

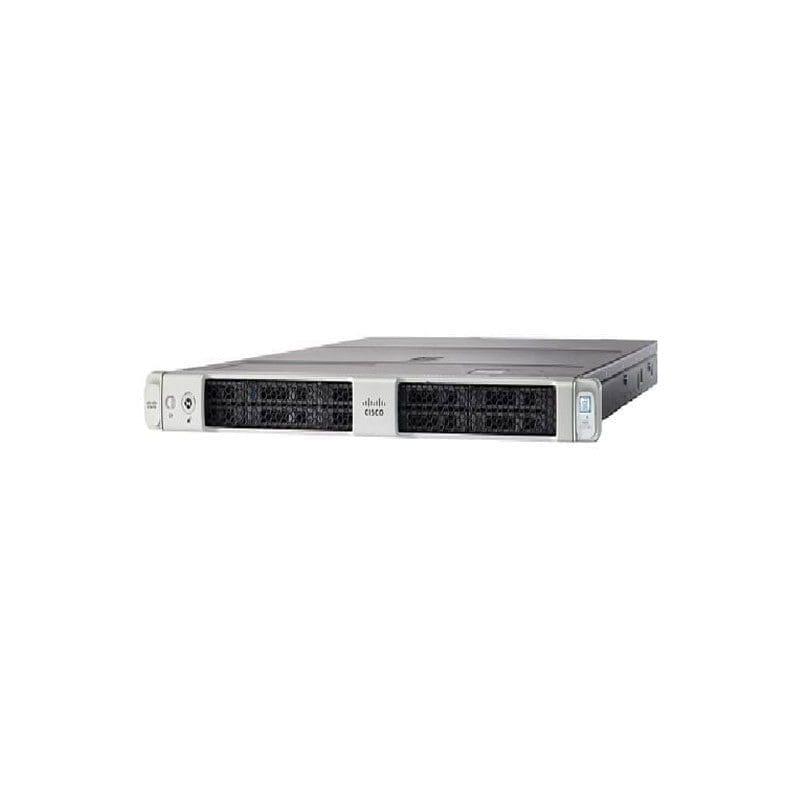

Cisco Systems Business Edition 6000M M5
General Information
Product Name Business Edition 6000M M5 Appliance Export
Manufacturer Part Number BE6M-M5-K9
Product Line Business Edition
Product Series 6000
Product Model 6000M M5
Product Type Server
Controllers
Controller Type Serial SATA/600
12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60
Display & Graphics
Graphics Controller Manufacturer ASPEED
Graphics Controller Model Pilot 4
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion 10 Bays
Number of Internal 2.5″ Bays 10
Hot Swap Bays Yes
Memory
Standard Memory 48 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Occupied Memory Slots 3 DDR4 Slots
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Maximum Power Supply Wattage 770 W
Storage
Total Hard Drive Capacity 300 GB
Hard Drive Interface 12Gb/s SAS
Hard Drive Configuration 1 x 300 GB
Optical Drive Type No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 1
Processor Manufacturer Intel
Processor Type Xeon Silver
Processor Model 4114
Processor Core Deca-core (10 Core)
Processor Speed 2.20 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Height 1.7″
Width 16.9″
Depth 29.8″
