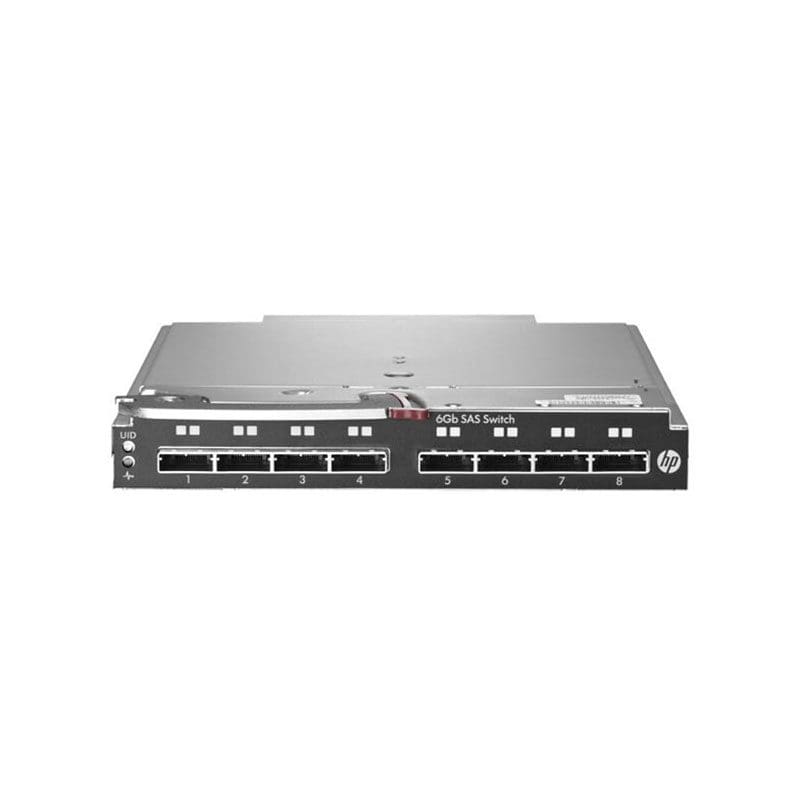

BK764A HPE 6GB SAS Switch for BladeSystem – Dual Pack

BK764A Technical Specifications

HPE 6GB SAS Switch for BladeSystem – Dual Pack

Port speed : 6 Gb/s SAS
Number of ports : (16) SAS (8) Mini-SAS SAS connections are 2x and mini-SAS connections are 4x, per switch
Aggregate switch bandwidth : 6 Gb/s
Protocol supported : Serial Attached SCSI (SAS)
Availability features : Redundant 6Gb/s SAS BL Switches offer high availability path failover
BladeSystem supported: Yes, please reference the QuickSpecs for details
Form factor : Double wide c-Class enclosure interconnect
Management features: Common switch management for shared and zoned SAS storage HPE Systems Insight Manager Onboard Administrator support
Upgradability: Configure as single or redundant pair of switches
Media type technology: LFF and SFF Hot Pluggable SAS or SATA HDDs
Product Dimensions (imperial): 14.5 x 20.06 x2.38 in
Weight : 6.89 lb
